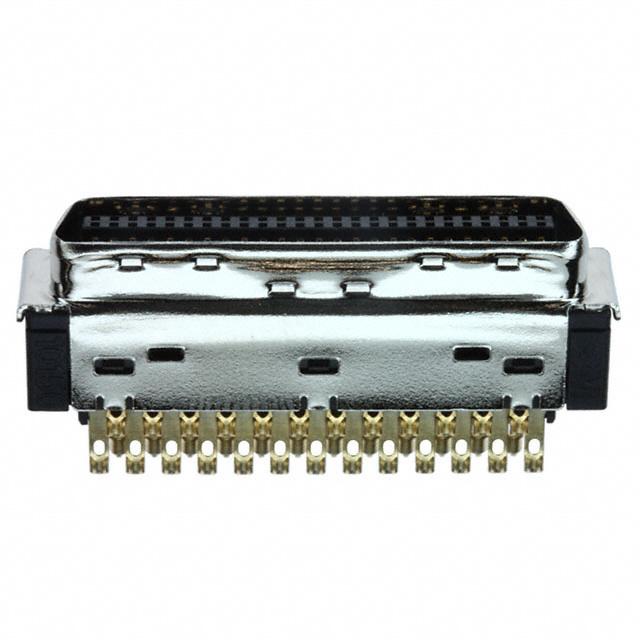

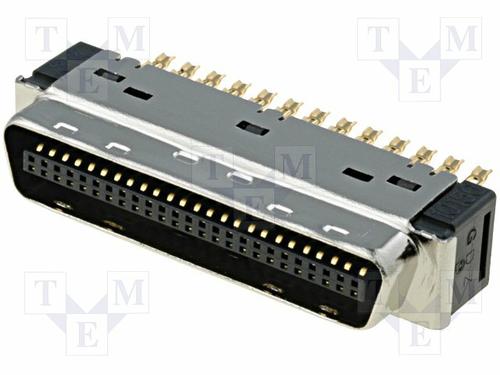

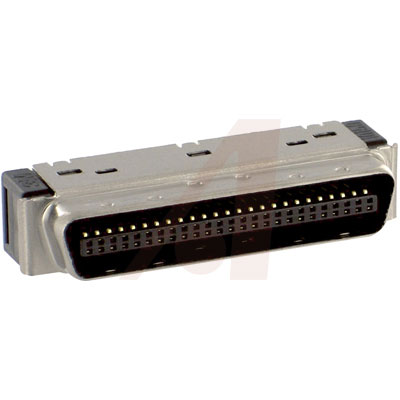

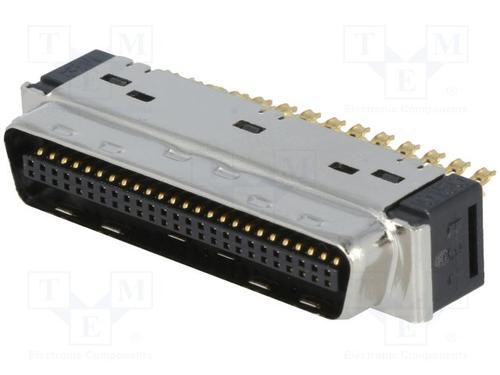

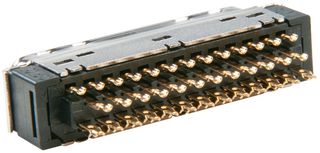

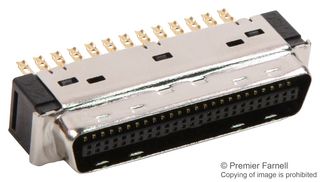

3M 10150-3000PE 连接器, 微型D sub, 101系列, 插头, 50 触点, 焊接, 电缆安装, 镀金触芯
输入/输出屏蔽式焊接插头
来自 的这些 101 系列小型 D 带状 MDR 电线安装输入/输出屏蔽采用焊杯端接。 这些 101 系列小型 D 带状连接器具有一个 Wiper-on -Wiper 触点,提供可靠的重复性配接,还具有坚固的玻璃强化绝缘。
**特点和优势:**
接受连接散线 24-30AWG
有关指状释放器底壳,请参见典型库存号 299-4604。
欧时:
3M 50 路 2.54mm节距 直向 电缆安装 公 SCSI 连接器 10150-3000PE, 焊接
得捷:
CONN PLUG 50POS STR SLDR CUP
立创商城:
SCSI 公 P数:50 MDR芯子
贸泽:
D-Sub微型D连接器 50P PLUG WIREMOUNT MDR
艾睿:
Devices such as printers and scanners that run the Small Computer System Interface standards and protocols will require this mini d ribbon 10150-3000PE SCSI connector from 10150-3000PE in order to interface with each other. This PL connector&s;s 50 contacts that are made out of copper alloy and plated with gold over nickel. This connector has a single port. It has a plug type gender. Its pitch is 2.54 mm. It has a straight body orientation. This device has a maximum current rating of 1 A. 10150-3000PE is housed in glass reinforced polyester. Its 50 terminals use the solder cup termination method. This product is 41.1 mm long, 9.1 mm tall and 19.3 mm deep. This SCSI connector has a minimum operating temperature of -55 °C and a maximum of 105 °C.
Allied Electronics:
Conn; D-Sub; Mini-D-Ribbon; CablePlug; 50Pos; STR; 101Series; Solder; 30-24AWG; 0.050In.
Chip1Stop:
Conn Mini D Ribbon PL 50 POS 2.54mm Solder Cup ST Cable Mount 50 Terminal 1 Port
TME:
Connector: MDR; PIN:50; shielded; for cable; Mat: polyester; plug
Newark:
# 3M 10150-3000PE Micro D Sub Connector, 101 Series, Plug, 50 Contacts, Solder, Cable Mount, Gold Plated Contacts
儒卓力:
**50P CONNECTOR MALE PLUG MDR **
Win Source:
CONN PLUG 50POS STR SLDR CUP / 50 Position Plug Connector Free Hanging In-Line Solder Cup
触点数 50
极性 Male
触点电镀 Nickel, Gold
额定电流 1 A
绝缘电阻 100 MΩ
排数 2
易燃性等级 UL 94 V-0
针脚数 50
额定电流Max 1 A
工作温度Max 105 ℃
工作温度Min -55 ℃
安装方式 Solder
引脚数 50
封装 -
引脚间距 1.27 mm
长度 41.1 mm
宽度 19.3 mm
高度 9.1 mm
封装 -
引脚间距 1.27 mm
外壳颜色 Black
颜色 Black
触点材质 Copper Alloy
材质 Steel
工作温度 -55℃ ~ 105℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Tray
制造应用 Industrial, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
10150-3000PE 3M | 当前型号 | 当前型号 |
10150-3000VE 3M | 功能相似 | 10150-3000PE和10150-3000VE的区别 |
