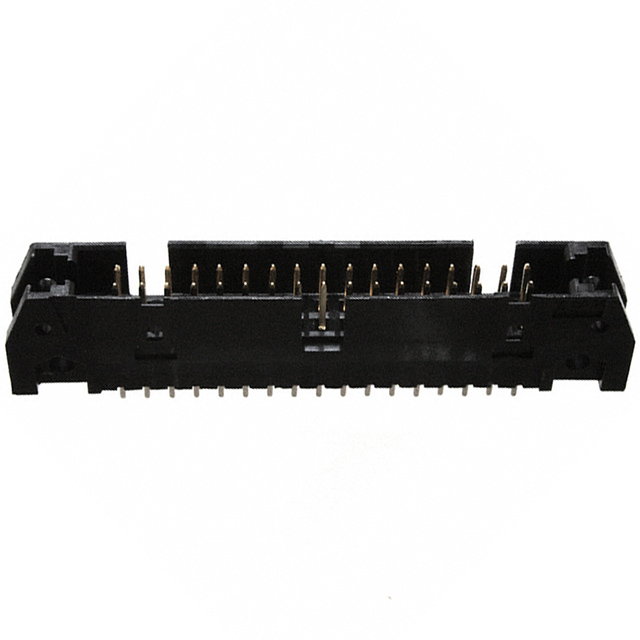

102156-8

集管和线壳 30DP 4S UNIV HEADER

034 UNIV HDR SP 4S 30DP STD

Product Highlights

Connector Type = Universal Ejection Pin Headers

Standard Profile

Number of Positions = 34

2.54 x 2.54 mm Centerline, Matrix

PCB Mount Angle = Vertical

得捷:
CONN HEADER VERT 34POS 2.54MM

贸泽:
集管和线壳 30DP 4S UNIV HEADER

艾睿:
Use this ejector 102156-8 connector from TE Connectivity when board-to-board interconnects is required. This HDR connector&s;s 34 contacts that are made out of phosphor bronze|brass and plated with gold over nickel. Its pitch is 2.54 mm. It has a straight body orientation. This is a 2-row connector. It has a maximum voltage rating of 250 VAC. It has a header type gender. This device has a maximum current rating of 1 A/contact. The component will be shipped in tray format. This product is 62.48 mm long, 13.94 mm tall and 8.53 mm deep. 102156-8 is housed in black thermoplastic. This connector has an operating temperature of -65 to 105 °C. It uses the solder termination method.

安富利:
Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Tray

Newark:
# AMP - TE CONNECTIVITY  102156-8  034 UNIV HDR SP 4S 30DP STD

MASTER:
HEADER ASSY, UNIVERSAL, AMP-LATCH

Powell:
Pin and Pinless Headers AMP-LATCH

Online Components:
HEADER ASSY, UNIVERSAL, AMP-LATCH

Electro Sonic:
034 UNIV HDR SP 4S 30DP STD
