1-102160-0

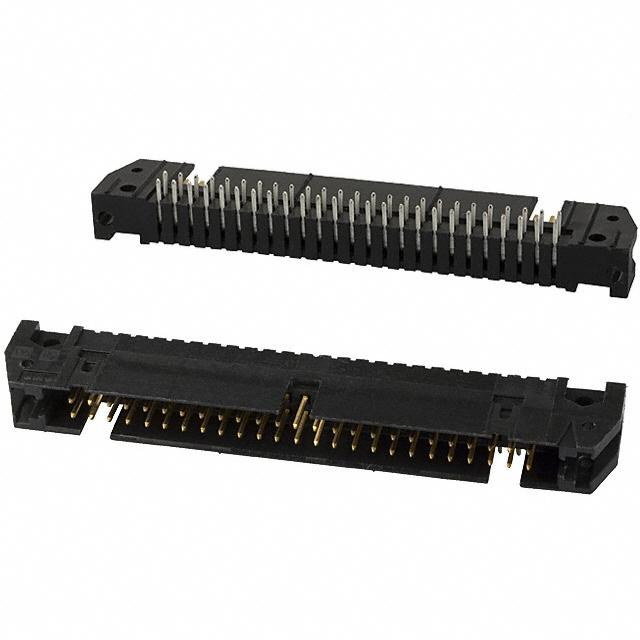

AMP-LATCH 50 位置 直角 通用 弹出 插针 针座

050 UNIV HDR RA 4S 30DP STD

Product Highlights

Connector Type = Universal Ejection Pin Headers

Standard Profile

Number of Positions = 50

2.54 x 2.54 mm Centerline, Matrix

PCB Mount Angle = Right Angle

得捷:
CONN HEADER R/A 50POS 2.54MM

艾睿:
This ejector 1-102160-0 header connector from TE Connectivity is used for jumper posts to support physical configuration options on printed circuit boards. This HDR connector&s;s 50 contacts that are made out of phosphor bronze|brass and plated with gold over nickel. This is a 2-row connector. It has a header type gender. Its pitch is 2.54 mm. It has a maximum voltage rating of 250 VAC. It has a right angle body orientation. This device has a maximum current rating of 1 A/contact. The item will be shipped in tray orientation. 1-102160-0 is housed in black thermoplastic. This connector has an operating temperature of -65 to 105 °C. It uses the solder termination method. This product is 82.8 mm long, 8.53 mm tall and 13.94 mm deep.

安富利:
Conn Ejector Header HDR 50 POS 2.54mm Solder RA Thru-Hole

Verical:
Conn Ejector Header HDR 50 POS 2.54mm Solder RA Thru-Hole Tray

Newark:
# AMP - TE CONNECTIVITY  1-102160-0  050 UNIV HDR RA 4S 30DP STD New

MASTER:
HEADER ASSY, UNIVERSAL, AMP-LATCH

Powell:
Pin and Pinless Headers AMP-LATCH

Online Components:
050 UNIV HDR RA 4S 30DP STD

Electro Sonic:
050 UNIV HDR RA 4S 30DP STD
