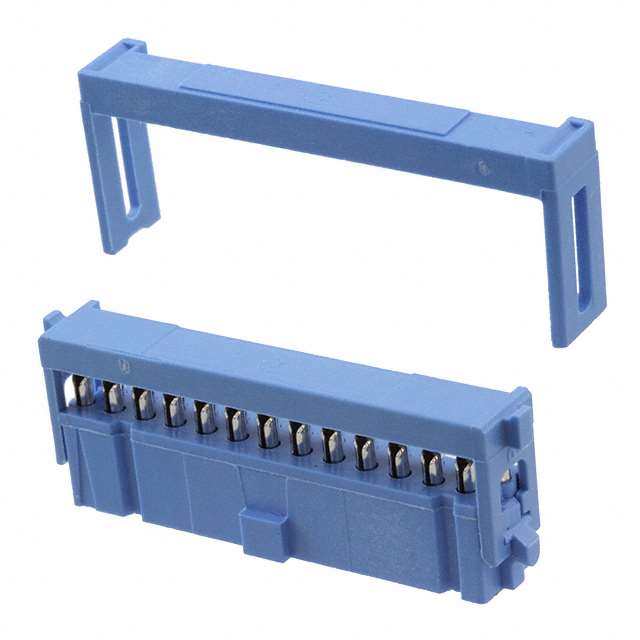

Conn IDC Connector F 26POS 2.54mm IDT RA Cable Mount T/R
609-2641=FSKT IDC S 26 30AU PL
Product Highlights
Connector Type = AMP-LATCH
Number of Positions = 26
Receptacle
Mating Polarization Method = Center & Military
With Mating Polarization
得捷:
CONN RCPT 26P IDC 28-30AWG GOLD
艾睿:
Mount this idc connector 1-1437021-4 header connector from TE Connectivity on a jumper post on your PCB to support physical configuration options. This F connector&s;s 26 contacts that are made out of beryllium copper and plated with gold over nickel. This is a 2-row connector. It has a right angle body orientation. It has a female type gender. Its pitch is 2.54 mm. This device has a maximum current rating of 1 A/contact. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This product is 37.49 mm long, 14.43 mm tall and 7 mm deep. 1-1437021-4 is housed in blue thermoplastic. It uses the idt termination method. This connector has an operating temperature of -55 to 125 °C.
安富利:
Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount T/R
Verical:
Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount T/R
MASTER:
CONNECTOR ASSEMBLY, FEMALE SOCKET TRANSITION
Online Components:
609-2641=FSKT IDC S 26 30AU PL
Electro Sonic:
609-2641=FSKT IDC S 26 30AU PL
