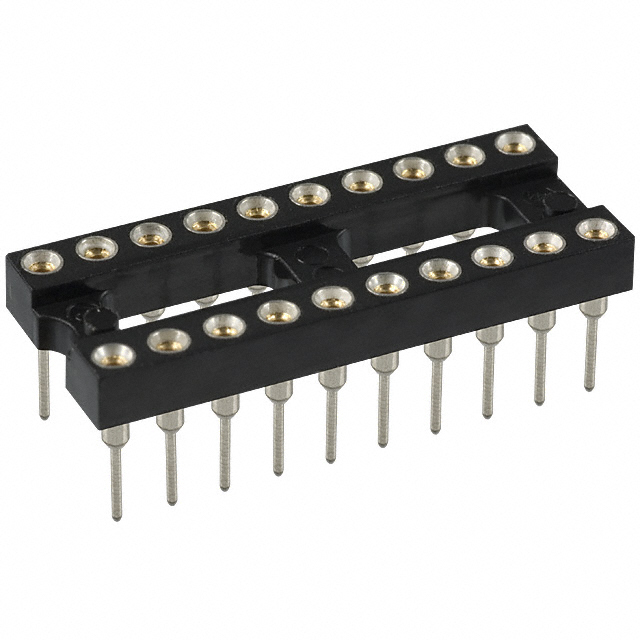

111-43-320-41-001000

MILL MAX  111-43-320-41-001000  芯片插座, DIP, 20路, 通孔安装

20（2 x 10） 位置 DIP，0.3"（7.62mm）行距 插口 镀金 通孔

得捷:
CONN IC DIP SOCKET 20POS GOLD

e络盟:
芯片插座, DIP, 20路, 通孔安装

艾睿:
Obtaining a strong and tight connection for when you have multiples wires on a cable can be accomplished with this dip socket 111-43-320-41-001000 connector socket from Mill-Max Mfg. Corp.. This SKT connector&s;s 20 contacts that are made out of beryllium copper and plated with gold over nickel. Its pitch is 2.54 mm. This is a 2-row connector. It has a straight body orientation. It has a socket type gender. It has a maximum voltage rating of 150 VDC|100VAC. This device has a maximum current rating of 3 A. 111-43-320-41-001000 is housed in polychlorinated terphenyl. It is insulated with polychlorinated terphenyl. This connector socket has an operating temperature of -55 to 125 °C. This product is 25.4 mm long, 4.19 mm tall and 10.16 mm deep. It uses the solder termination method.

Chip1Stop:
Conn DIP Socket SKT 20 POS 2.54mm Solder ST Thru-Hole Tube

Verical:
Conn DIP Socket SKT 20 POS 2.54mm Solder ST Thru-Hole Tube

Newark:
# MILL MAX  111-43-320-41-001000  IC & Component Socket, 111 Series, DIP Socket, 20 Contacts, 2.54 mm, 7.62 mm, Gold Plated Contacts
