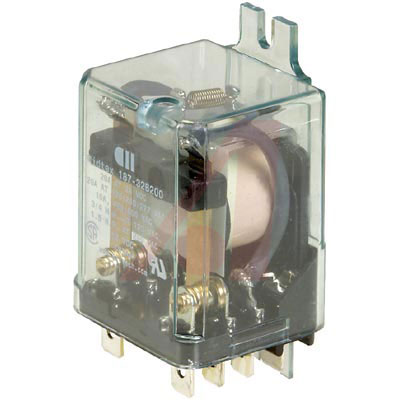

Power Relay 12VDC 20A DPDT 73.66mm 38.74mm 35.56mm Flange Mount
通用 继电器 DPDT（2 Form C） 12VDC 线圈 底座安装
得捷:
RELAY GEN PURPOSE DPDT 20A 12V
艾睿:
Power Relay 12VDC 20A DPDT73.66x38.74x35.56mm Flange
Allied Electronics:
Relay; 20 A; 12 VDC; 2 Form C; DPDT; 2 C⁄ O; 120 Ohms; Panel; Power
Verical:
Power Relay 12VDC 20A DPDT 73.66mm 38.74mm 35.56mm Flange Mount
MASTER:
Electromechanical Relay 12VDC 120Ohm 20A DPDT 73.66x38.74x35.56mm Flange Power Relay
Online Components:
Electromechanical Relay 12VDC 120Ohm 20A DPDT 73.66x38.74x35.56mm Flange Power Relay
额定电压DC 12.0 V
额定电流 20 A
触点类型 DPDT
触点额定电流 20.0 A
线圈电压 12.0V, 12.0Vmax
线圈电流 100 mA
线圈电阻 120 Ω
载流 20.0 A
额定电流Max 20 A
线圈电压DC 12 V
开关电流Max 20 A
工作温度Max 70 ℃
工作温度Min -45 ℃
安装方式 Panel, Quick Connect, Solder
高度 35.56 mm
触点材质 Silver Cadmium Oxide
工作温度 -45℃ ~ 70℃
产品生命周期 Unknown
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ECCN代码 EAR99
HTS代码 8536410020
