1-284391-0

Conn Terminal Block F 10POS 3.5mm Solder ST Thru-Hole 12A/Contact

10 接线板 - 线至板 水平，带板 0.138"（3.50mm） 通孔

得捷:
TERM BLK 10P SIDE ENT 3.5MM PCB

贸泽:
Fixed Terminal Blocks 10P SIDE ENT 3.5mm

艾睿:

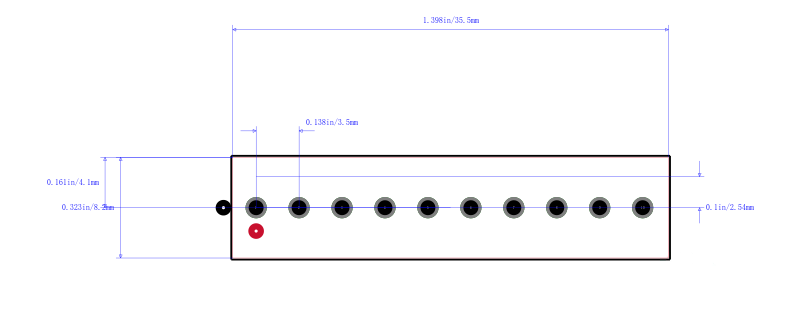

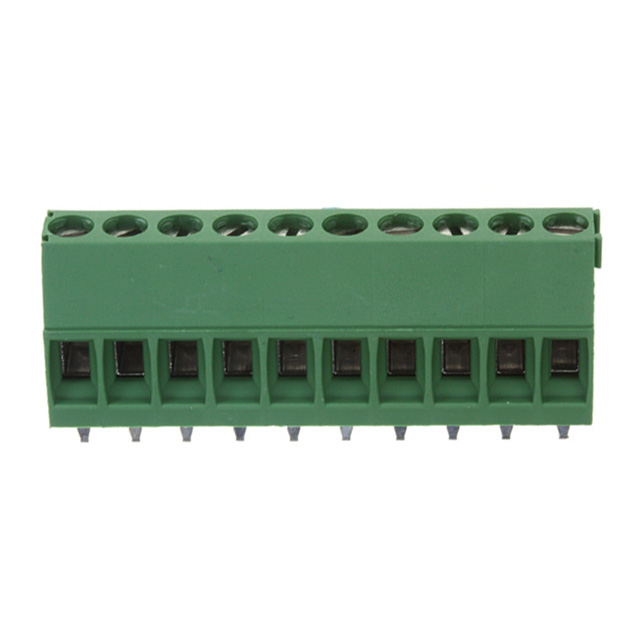

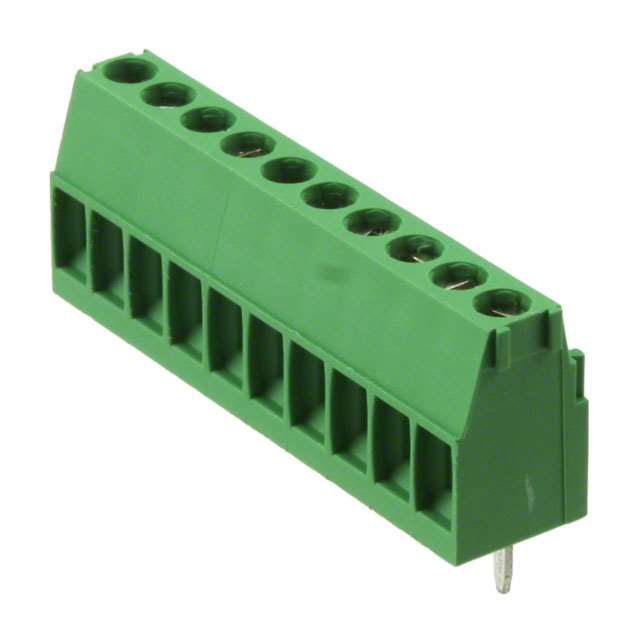

TE Connectivity&s;s eurostyle block 1-284391-0 PCB terminal block will ensure strong connections between circuits. This F connector&s;s 10 contacts that are made out of brass and plated with tin/nickel. Its pitch is 3.5 mm. It has a female type gender. This is a 1-row connector. It has a maximum voltage rating of 300 VAC. It has a straight body orientation. 1-284391-0 is housed in polyamide 6/6. This device has a maximum current rating of 12 A/contact. Its wire is 14-30 AWG. This product is 35.5 mm long, 12.6 mm tall and 8.2 mm deep. This quick disconnect terminal has an operating temperature of -40 to 105 °C. It uses the solder termination method.

安富利:
Conn Terminal Block F 10 POS 3.5mm Solder ST Thru-Hole 12A/Contact

Chip1Stop:
Conn Eurostyle Block F 10 POS 3.5mm Solder ST Thru-Hole 12A/Contact

Verical:
Conn Eurostyle Block F 10 POS 3.5mm Solder ST Thru-Hole 12A/Contact Box

Newark:
# AMP - TE CONNECTIVITY  1-284391-0  TERMI-BLOK PCB SIDE ENTRY STAC New

MASTER:
TERMINAL BLOCK PCB, MOUNT STRAIGHT SIDE WIRE ENTRY, STACKING

Powell:
Terminal Block Connectors

Online Components:
TERMI-BLOK PCB SIDE ENTRY STAC

Electro Sonic:
TERMI-BLOK PCB SIDE ENTRY STAC
