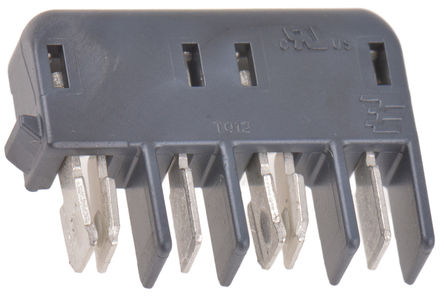

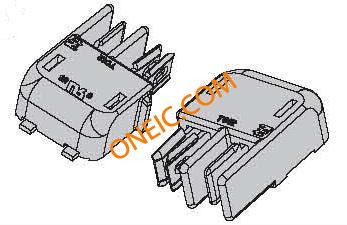

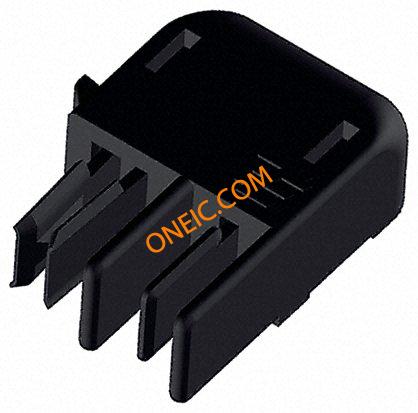

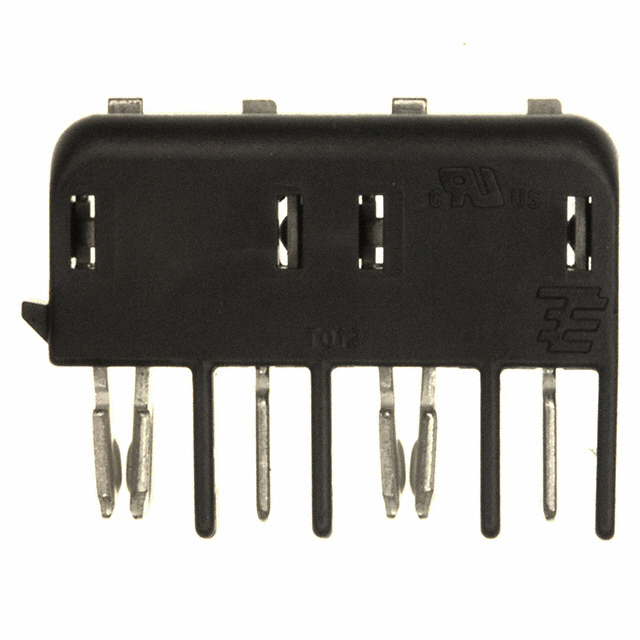

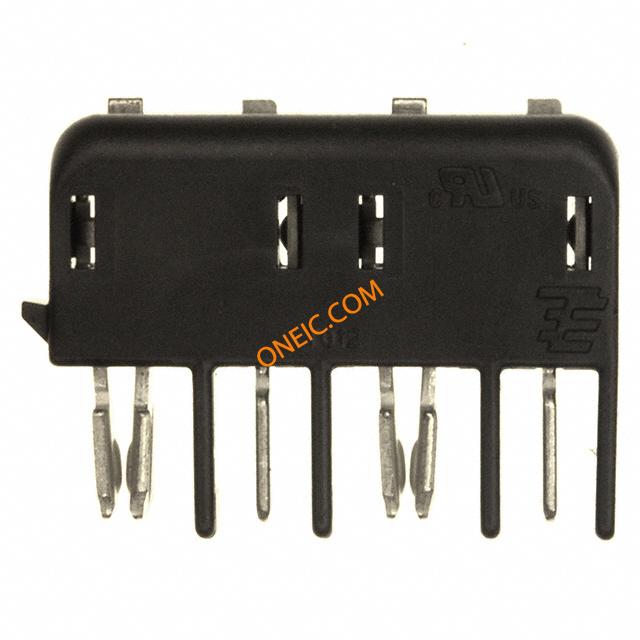

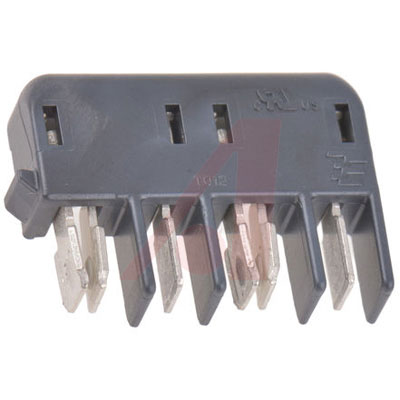

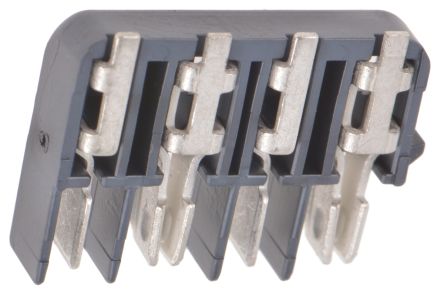

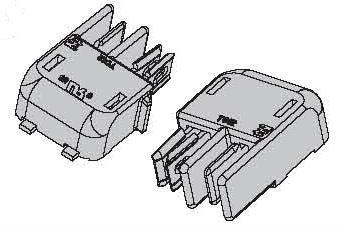

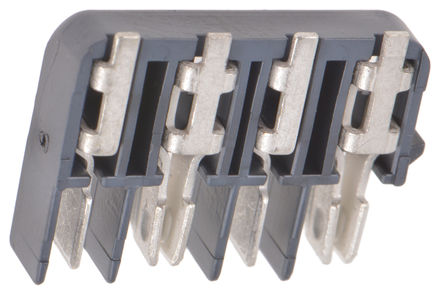

686-0930 ### TE Connectivity Hermaphroditic 刀片和插座连接器Hermaphoroditic 刀片和插座连接器是 SMT 连接器,适用于直插式板对板应用。 应用包括:LED 照明控制、LED 照明带、立体发光字连接器可单独使用 单部件库存,每个置于印刷电路板上 连接器可水平、垂直结合和解开 连接器可进行 90° 到 180° 铰接 薄型扁平表面与 SMT 和回流处理兼容 圆角可减少遮蔽 备用 SMT 垫 焊接垫足迹,与 Tyco Electronics SMT Poke-In LED 连接器兼容
板对板,带锁夹
有关合适的电缆组件,例如请参见库存号 686-0930
得捷:
CONN SSL RCPT & BLADE 4POS 4MM
欧时:
Connector ass,blade+recpt,SMT,4Wy,Black
贸泽:
Lighting Connectors BLADE AND RCPT 4 POS SMT BLK
艾睿:
Make strong and binding connections on your circuit boards by adopting this board to board 1-2058703-2 connector from TE Connectivity. This M connector&s;s 4 contacts that are made out of copper alloy and plated with tin over nickel. This is a 1-row connector. It has a male type gender. Its pitch is 4 mm. It has a right angle body orientation. It has a maximum voltage rating of 125 VDC|125VAC. This device has a maximum current rating of 6 A/contact. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This connector has an operating temperature of -40 to 105 °C. This product is 16.7 mm long, 4.05 mm tall and 19.75 mm deep. 1-2058703-2 is housed in black liquid crystal polymer. It uses the solder termination method.
Allied Electronics:
Hermaphroditic Series; 4mm Pitch 4Way 1 Row Right Angle PCB Header; Solder Term; 6A
安富利:
Conn Board to Board M 4 POS 4mm Solder RA SMD T/R
Chip1Stop:
Conn Board to Board M 4 POS 4mm Solder RA SMD T/R
Verical:
Conn Board to Board M 4 POS 4mm Solder RA SMD T/R
MASTER:
CONNECTOR ASSEMBLY, HERMAPHRODITIC BLADE AND RECEPTACLE, WITH LATCH
Powell:
Lighting Connectors BLADE AND RCPT 4 POS SMT BLK
Online Components:
Herm Blade& Recp Assy, 4 Pos,Latch
Electro Sonic:
Herm Blade& Recp Assy, 4 Pos,Latch
触点数 4
极性 Female
触点电镀 Tin
额定电压AC 125 V
额定电流 6 A
排数 1
方向 Right Angle
易燃性等级 UL 94 V-0
针脚数 4
额定电流Max 6A/触头
额定电压 125 V
安装方式 Surface Mount
高度 4.05 mm
外壳颜色 Black
颜色 Black
触点材质 Copper Alloy
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
