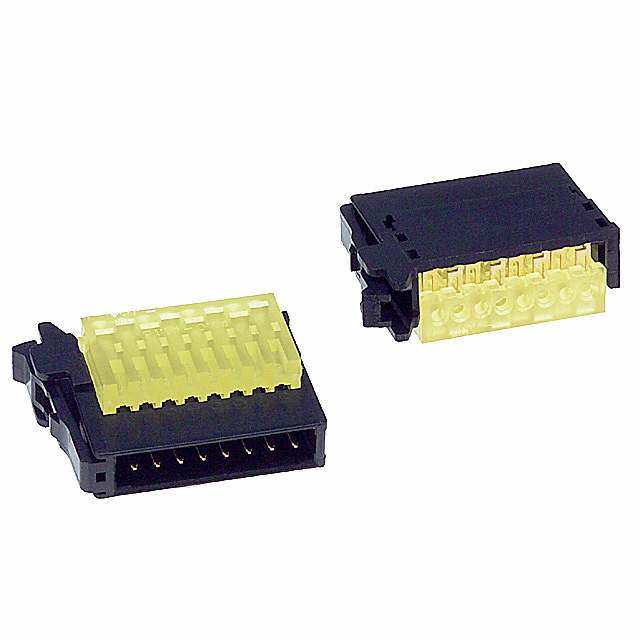

TE CONNECTIVITY 1473562-8 线至板连接器, 黄色, RITS系列, 8 触点, 插头, 4 mm, IDC / IDT, 1 排
压接 8路 2mm节距 插头 , 电缆安装, 3A额定电流, 铜合金触芯
得捷:
CONN PLUG 8POS IDC GOLD
e络盟:
线至板连接器, 黄色, 4 mm, 8 触点, 插头, RITS系列, IDC / IDT, 1 排
艾睿:
Conn PL 8 POS 2mm Crimp ST Cable Mount 8 Terminal 1 Port Tube
安富利:
Conn E-Con Sensor Connector PL 8 POS 2mm Crimp ST Cable Mount 8 Terminal 1 Port
Chip1Stop:
Conn Power PL 8 POS 2mm Crimp ST Cable Mount 8 Terminal 1 Port Tube
Verical:
Conn PL 8 POS 2mm Crimp ST Cable Mount 8 Terminal 1 Port Tube
Newark:
# TE CONNECTIVITY 1473562-8 Wire-To-Board Connector, Yellow, RITS Series, IDC / IDT, Plug, 8, 4 mm, Gold Plated Contacts
MASTER:
Conn PL 8 POS 2mm Crimp ST Cable Mount 8 Terminal 1 Port Tube
Online Components:
RITS CONN.PLUG ASSY 8P YELLOW
Electro Sonic:
RITS CONN. PLUG ASSY 8P YELLOW
触点数 8
极性 Male
触点电镀 Gold
额定电压AC 32.0 V
额定电流 3.00 A
排数 1
易燃性等级 UL 94 V-0
针脚数 8
安装角度 180 °
额定电流Max 3A/触头
工作温度Max 75 ℃
工作温度Min -30 ℃
安装方式 PC Board
引脚间距 2.00 mm
长度 24.1 mm
宽度 18.5 mm
高度 8.2 mm
引脚间距 2.00 mm
外壳颜色 Yellow
颜色 Black
触点材质 Copper
材质 Polybutylene Terephthalate
工作温度 -30℃ ~ 75℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8538906000
