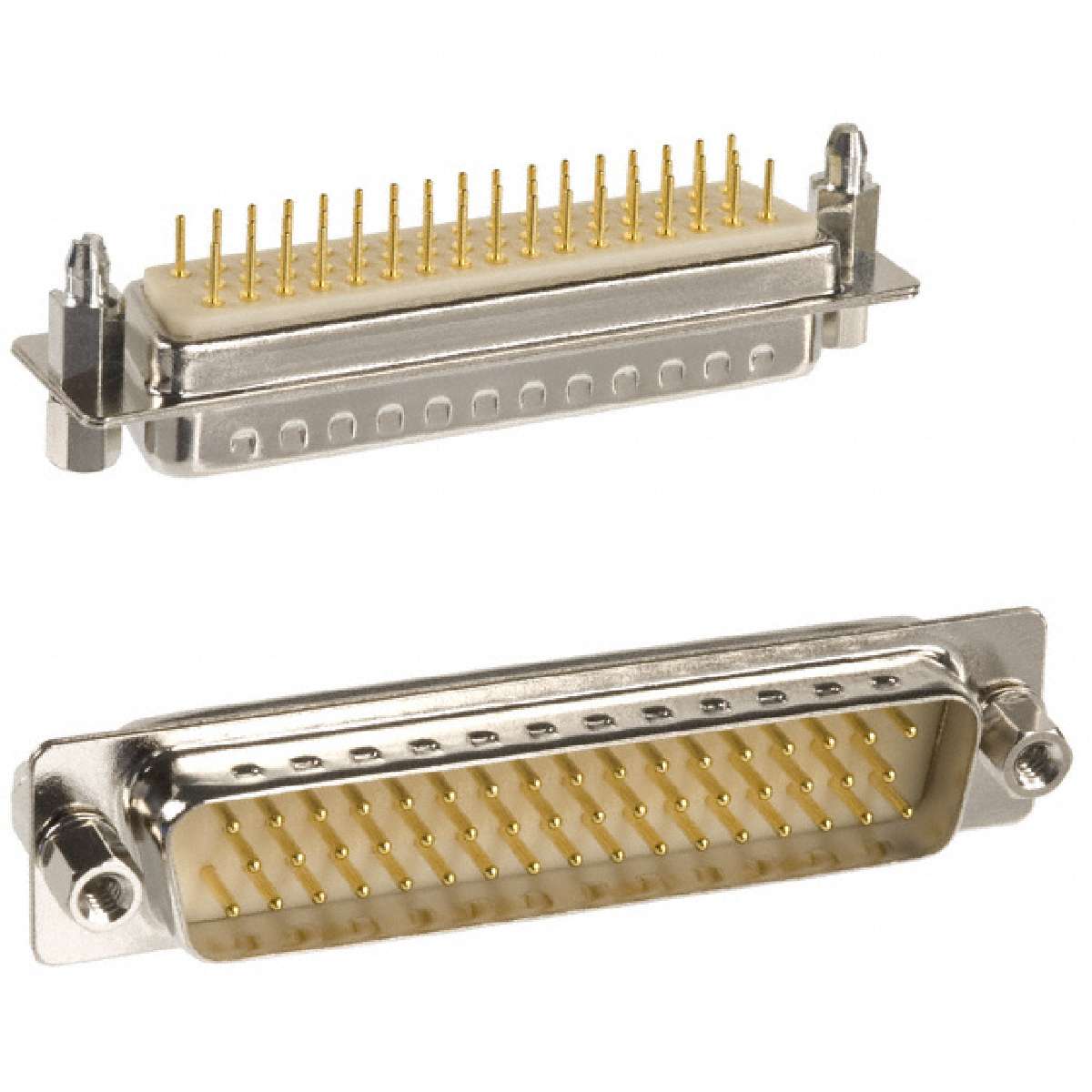

D Sub Connector, 50Contacts, Plug, DD, 172 Series, Steel Body, Through Hole
The 172 series high reliability Dip Solder D-sub Connectors with screw machine contacts. It has brass male and female pin contacts with gold flash plating on entire contact, glass-filled thermoplastic insulator and nickel-plated, steel shell.
得捷:
CONN D-SUB PLUG 50P PNL MNT SLDR
Newark:
D Sub Connector, 50 Contacts, Plug, DD, 172 Series, Steel Body, Through Hole
触点数 50
极性 Male
触点电镀 Gold
额定电流 5 A
排数 3
易燃性等级 UL 94 V-0
针脚数 50
安装方式 Through Hole
引脚间距 2.77 mm
长度 67.0 mm
宽度 15.4 mm
高度 10.2 mm
引脚间距 2.77 mm
外壳颜色 White
颜色 White
触点材质 Brass
工作温度 -50℃ ~ 100℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Tray
制造应用 Communications & Networking, Computers & Computer Peripherals, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
172-E50-113R911 NorComp | 当前型号 | 当前型号 |
172-E50-112-911 NorComp | 完全替代 | 172-E50-113R911和172-E50-112-911的区别 |
