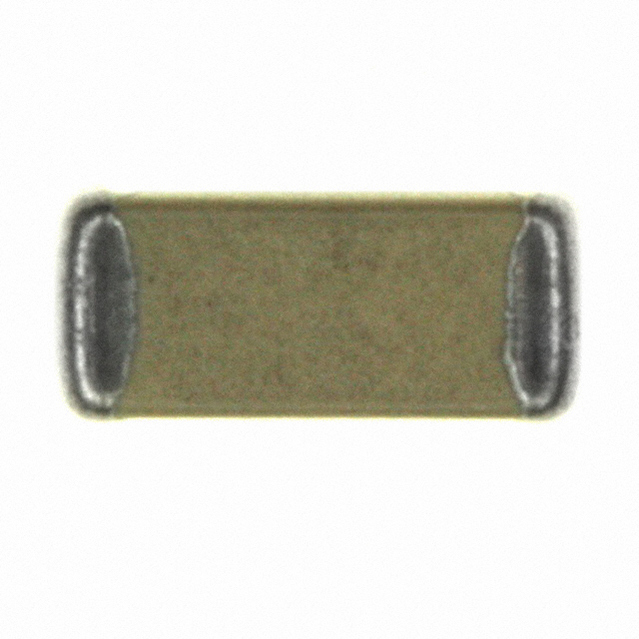

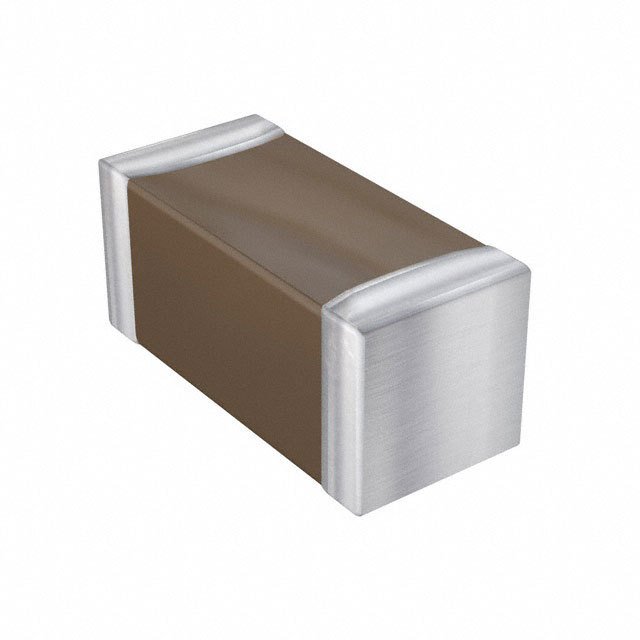

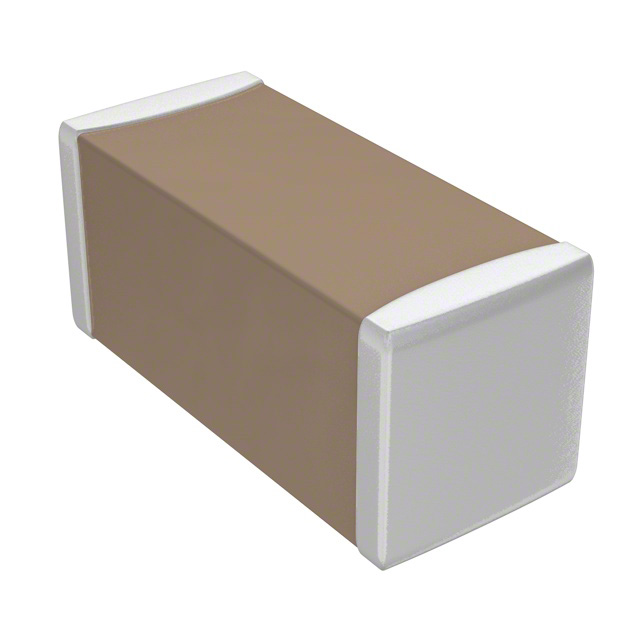

1808HC102MAZ1A

1nf 3kV 20 % 容差 1808 多层陶瓷电容

1000 pF ±20% 3000V（3kV） 陶瓷器 X7R 1808（4520 公制）

得捷:
CAP CER 1000PF 3KV X7R 1808

安富利:
X7R formulations are called “temperature stable” ceramics and fall into EIA Class II materials. X7R is the most popular of these intermediate dielectric constant materials. Its temperature variation of capacitance is within ±15% from -55°C to +125°C. This capacitance change is non-linear.Capacitance for X7R varies under the influence of electrical operating conditions such as voltage and frequency.X7R dielectric chip usage covers the broad spectrum of industrial applications where known changes in capacitance due to applied voltages are acceptable.

Newark:
# AVX  1808HC102MAZ1A  SMD Multilayer Ceramic Capacitor, FLEXITERM®, 1808 [4520 Metric], 1000 pF, 3000 V, ± 20%, X7R
