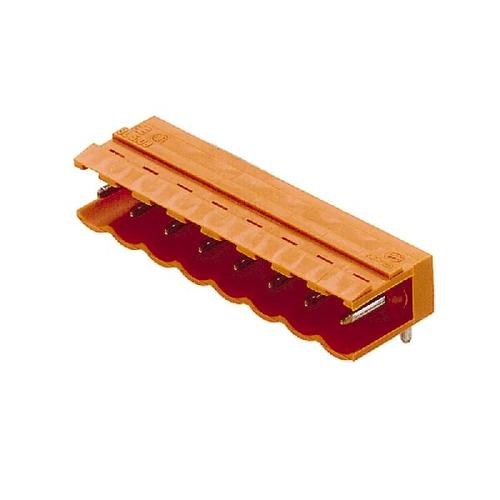

WEIDMULLER 1626040000 Terminal Block, Header, 5mm, 8Positions, 15A, 300V, Through Hole Right Angle
Conn Shrouded Header HDR 8 POS 5mm Solder RA Thru-Hole Box
得捷:
TERM BLOCK HDR 8POS 90DEG 5MM
安富利:
Conn Shrouded Header HDR 8 POS 5mm Solder RA Thru-Hole Box
Verical:
Conn Shrouded Header 2 Sides HDR 8 POS 5mm Solder RA Thru-Hole Box
Newark:
# WEIDMULLER 1626040000 Terminal Block, Header, 5 mm, 8 Positions, 15 A, 300 V, Through Hole Right Angle
MASTER:
Conn Shrouded Header 2 Sides HDR 8 POS 5mm Solder RA Thru-Hole Box
Online Components:
Conn Shrouded Header HDR 8 POS 5mm Solder RA Thru-Hole Box
Electro Sonic:
Conn Shrouded Header 2 Sides HDR 8 POS 5mm Solder RA Thru-Hole Box
触点数 8
极性 Male
触点电镀 Tin
额定电流 15.0 A
绝缘电阻 1.00 MΩ
排数 1
易燃性等级 UL 94 V-0
针脚数 8
安装角度 90.0 °
额定电流Max 15 A
额定电压Max 300 V
接触电阻Max 5 mΩ
安装方式 Through Hole
引脚间距 5.00 mm
长度 40.0 mm
宽度 12.0 mm
高度 8.5 mm
引脚间距 5.00 mm
外壳颜色 Black
颜色 Black
触点材质 Bronze
工作温度 -50℃ ~ 100℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Box
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
