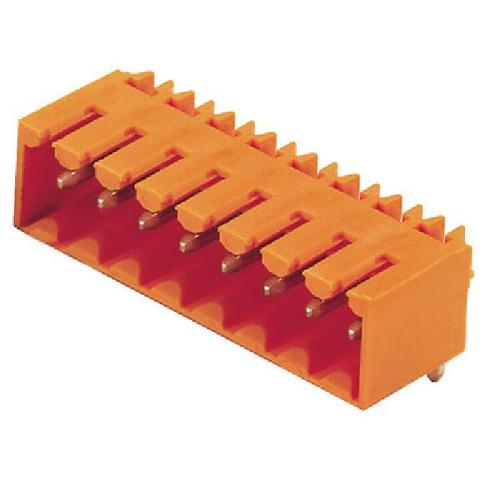

Wire-To-Board Connector, Side Entry, SL 3.5 Series, Through Hole, Plug, 6, 3.5mm
6 Position Terminal Block Header, Male Pins, Shrouded 4 Side 0.138" 3.50mm 90°, Right Angle Through Hole
得捷:
TERM BLOCK HDR 6POS 90DEG 3.5MM
安富利:
Conn Shrouded Header M 6 POS 3.5mm Solder RA Thru-Hole Box
Newark:
# WEIDMULLER 1605110000 Wire-To-Board Connector, Side Entry, SL 3.5 Series, Through Hole, Plug, 6, 3.5 mm
MASTER:
Conn Shrouded Header 4 Sides M 6 POS 3.5mm Solder RA Thru-Hole Box
Electro Sonic:
Conn Shrouded Header 4 Sides M 6 POS 3.5mm Solder RA Thru-Hole Box
触点数 6
触点电镀 Tin
绝缘电阻 1.00 MΩ
排数 1
易燃性等级 UL 94 V-0
针脚数 6
安装角度 90.0 °
额定电流Max 10 A
额定电压Max 300 V
安装方式 Through Hole
引脚间距 3.50 mm
长度 22.0 mm
宽度 11.1 mm
高度 7.50 mm
引脚间距 3.50 mm
外壳颜色 Orange
颜色 Orange
触点材质 Copper Alloy
工作温度 -50℃ ~ 100℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Box
RoHS标准 RoHS Compliant
含铅标准 Lead Free
