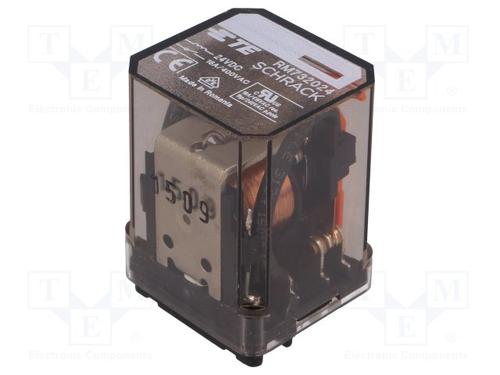

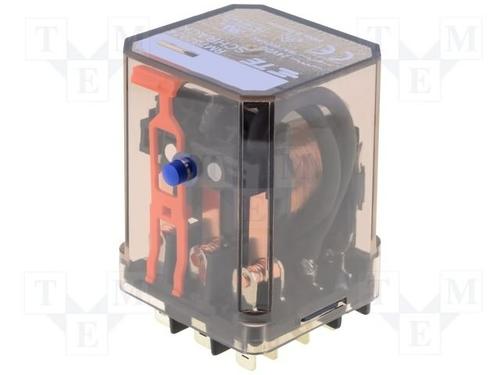

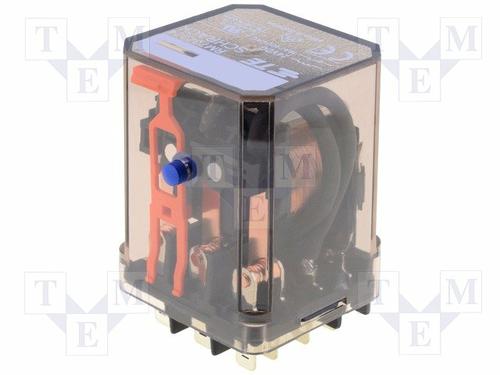

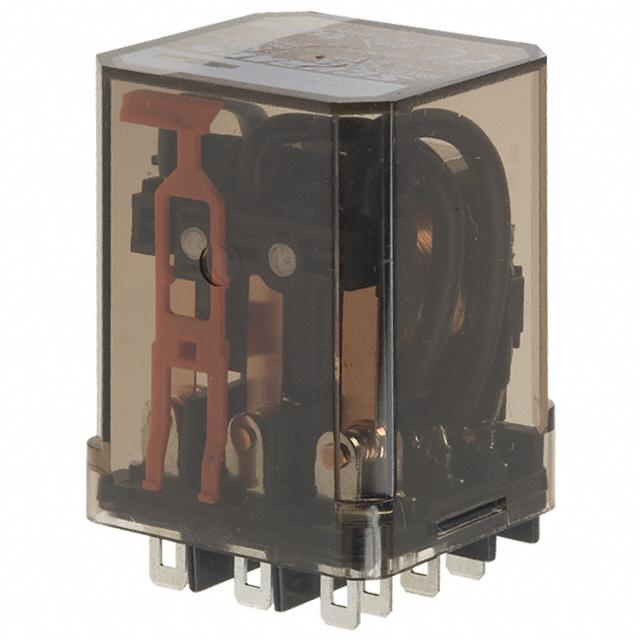

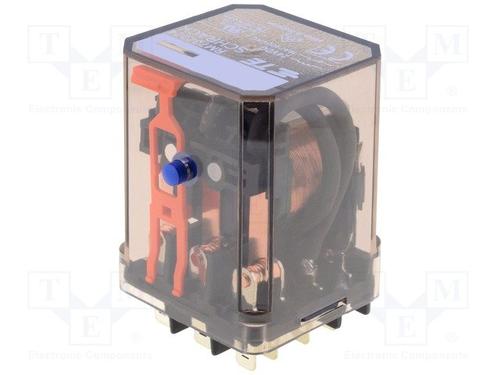

POWER/SIGNAL RELAY, 3PDT, MOMENTARY, 0.071A COIL, 24VDC COIL, 1700mW COIL, 16A CONTACT, PANEL MOUNT, ROHS COMPLIANT
RM732024
Product Highlights
RM2/3/7 Series
Contact Arrangement = 3 Form C, 3PDT, 3 C/O
Contact Current Rating = 16 Amps.
Monostable Coil Magnetic System
Without Coil Suppression Diode
安富利:
Electromechanical Relay 3PDT 40A 24VDC 345Ohm Plug-In
Chip1Stop:
Electromechanical Relay 24VDC 345Ohm 40A 3PDT 38.5x35.5x56.2mm Plug-In Power Relay
TME:
Relay: electromagnetic; 3PDT; Ucoil:24VDC; Icontacts max:16A
Verical:
Electromechanical Relay 24VDC 345Ohm 40A 3PDT 38.5x35.5x56.2mm Plug-In Power Relay
MASTER:
RM732024
Powell:
GPR Panel Plug-In Relays
Online Components:
RM732024
Electro Sonic:
RM732024
Win Source:
RELAY GEN PURPOSE 3PDT 16A 24V
额定电压AC 440 V
触点额定电流 40 A
线圈电压 24 VDC
线圈电流 70.8 mA
线圈电阻 345 Ω
额定电流Max 40 A
线圈电压DC 24 V
线圈功率 1.7 W
额定功率Max 6 kVA
额定电压AC Max 440 V
安装方式 Quick Connect, Plug In
引脚数 11
高度 48.5 mm
触点材质 Silver Cadmium Oxide
重量 81 g
工作温度 -45℃ ~ 60℃
产品生命周期 End of Life
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536410050
香港进出口证 NLR
