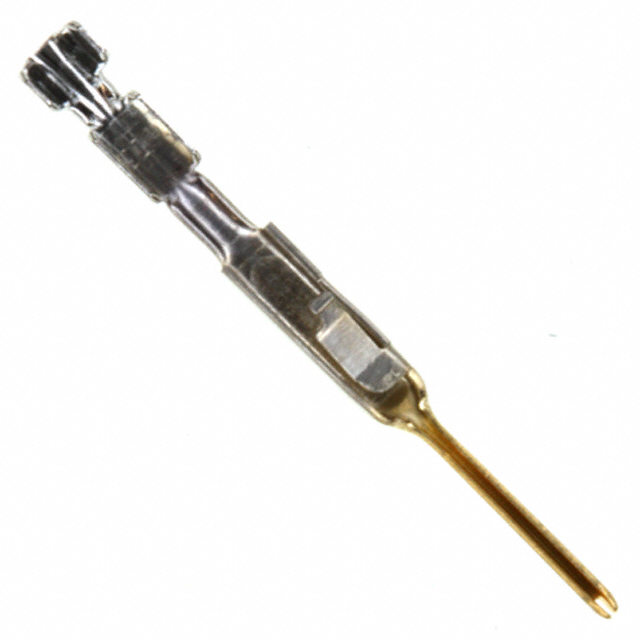

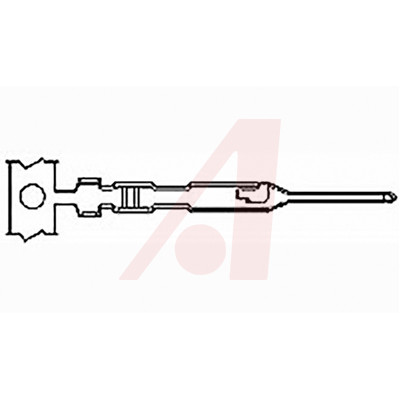

AMPMODU 30 金 26-22 AWG 压接 插针 IDC 接触端子
\- 引脚 触点 镀金 22-26 AWG 压接
得捷:
CONN PIN 22-26AWG CRIMP GOLD
e络盟:
触芯
艾睿:
Contact PIN Crimp ST Cable Mount 22-26AWG Loose
Allied Electronics:
AMPMODU MTE PCB Connector Contact; Male; Crimp; Gold over Nickel Plating
安富利:
Contact PIN Crimp ST Cable Mount Loose Piece
Chip1Stop:
Contact PIN Crimp ST Cable Mount Loose Piece
Verical:
Contact PIN Crimp ST Cable Mount Automotive Loose
Newark:
# AMP - TE CONNECTIVITY 104505-7 Contact, AMPMODU MTE Series, Pin, 22 AWG, Gold Plated Contacts
MASTER:
Contact - AMPMODU MTE Series - Pin - 22 AWG - Gold Plated Contacts.
Online Components:
MTE PIN LP
ICbanQ:
CONN PIN 22-26AWG 30GOLD CRIMP
Electro Sonic:
Contact - AMPMODU MTE Series - Pin - 22 AWG - Gold Plated Contacts.
触点数 1
极性 Male
线规 22AWG ~ 26AWG
触点电镀 Tin Lead, Gold
绝缘电阻 5.00 GΩ
额定电流Max 3 A
工作温度Max 105 ℃
工作温度Min -65 ℃
额定电压Max 300 VAC
接触电阻Max 12 mΩ
长度 20.57 mm
宽度 1.91 mm
触点材质 Phosphor Bronze
工作温度 -65℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536904000
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
104505-7 TE Connectivity 泰科 | 当前型号 | 当前型号 |
104505-6 泰科 | 完全替代 | 104505-7和104505-6的区别 |
5-104505-7 泰科 | 功能相似 | 104505-7和5-104505-7的区别 |
1-104505-3 泰科 | 功能相似 | 104505-7和1-104505-3的区别 |
