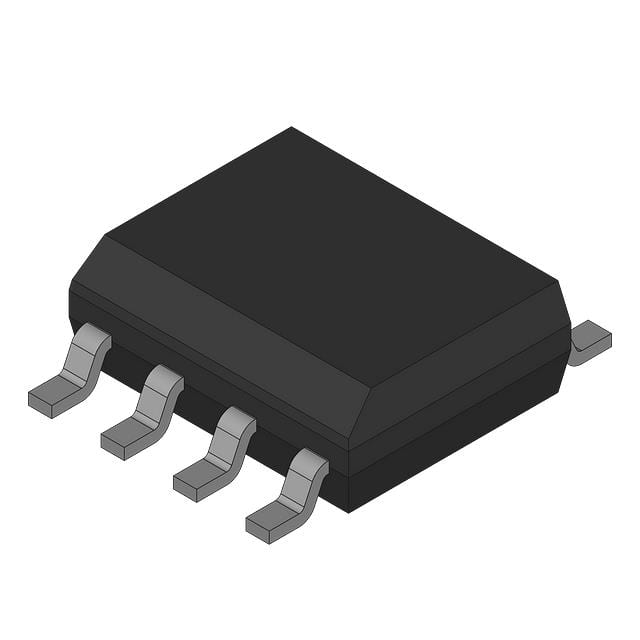

INFINEON 1EDI60I12AFXUMA1 IGBT DRIVER, INV/NON-INV, 10A, DSO-8 新
The is a 1EDI EiceDRIVER compact separate output variant for IGBT in 8 pin DSO package. This galvanically isolated single channel IGBT driver provides minimum output currents up to 6A at separated output pins. The input logic pins operate on a wide input voltage range from 3V to 15V using CMOS threshold levels to support even 3.3V microcontroller. The data transfer across isolation barrier is realized by coreless transformer technology. It is used in AC and brushless DC motor drives, high voltage DC/DC converter and DC/AC-inverter, induction heating resonant application, UPS-systems, welding and solar.
电源电压DC 3.50V min
上升/下降时间 10ns, 9ns
输出接口数 1
通道数 1
针脚数 8
耗散功率 400 mW
下降时间Max 19 ns
上升时间Max 20 ns
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 400 mW
电源电压Max 15 V
电源电压Min 3.5 V
安装方式 Surface Mount
引脚数 8
封装 PG-DSO-8-51
封装 PG-DSO-8-51
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Power Management, Welding, Drives, Induction Cooking, Induction Heating, Uninterruptible Power Supply UPS, 电源管理, Solar
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
