1767410

Phoenix Contact PCB 接线端子块 COMBICON SMSTBA 系列 6路 5.08mm节距 1767410, 焊接端接, 12A

Conn Shrouded Header HDR 6 POS 5.08mm Solder Thru-Hole

得捷:
TERM BLOCK HDR 6POS 45DEG 5.08MM

欧时:
Phoenix Contact PCB 接线端子块 COMBICON SMSTBA 系列 6路 5.08mm节距 1767410, 焊接端接, 12A

艾睿:

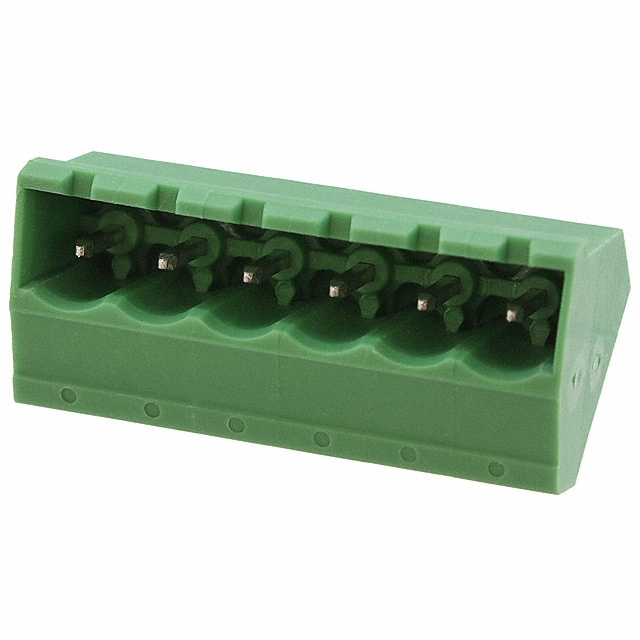

Look no further than the shrouded 1767410 header connector from Phoenix Contact, a great tool to use when board-to-board interconnects is required. This HDR connector has 6 contacts that are plated with tin. It has a header type gender. It has a maximum voltage rating of 320 V. Its pitch is 5.08 mm. This is a 1-row connector. This device has a maximum current rating of 12 A. 1767410 is housed in green polybutylene terephthalate. It uses the solder termination method. This product is 32.48 mm long, 14.8 mm tall and 16.5 mm deep.

Verical:
Conn Shrouded Header 4 Sides HDR 6 POS 5.08mm Solder Thru-Hole

MASTER:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 6 - pitch: 5.08 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3

Online Components:
Conn Shrouded Header HDR 6 POS 5.08mm Solder Thru-Hole

Electro Sonic:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
