1766686

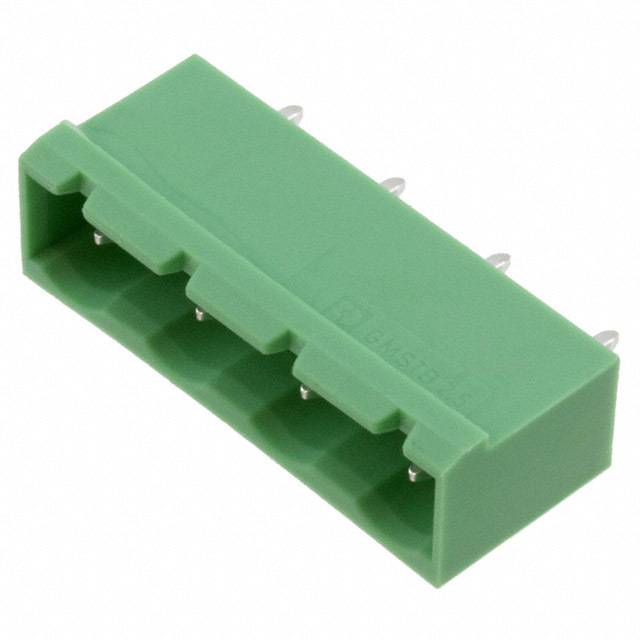

Conn Shrouded Header HDR 4POS 7.5mm Solder ST Thru-Hole

Header, PBT Insulation Material, Solder Type Mounting, 12 A Nominal Current Rating, 7.5 mm Pitch

* Polyamide Insulating Material

* Voltage: 300, Amps: 10

* Header with Side Panels

得捷:
TERM BLOCK HDR 4POS VERT 7.5MM

艾睿:
Use this shrouded 1766686 connector from Phoenix Contact when board-to-board interconnects is required. This HDR connector has 4 contacts that are plated with tin. It has a straight body orientation. Its pitch is 7.5 mm. This is a 1-row connector. It has a maximum voltage rating of 630 V. It has a header type gender. This device has a maximum current rating of 12 A. This product is 30 mm long, 12 mm tall and 8.6 mm deep. 1766686 is housed in green polyamide. It uses the solder termination method.

Allied Electronics:
Conn; TermBlk; PCB; Header; SnglLvl; Sldr; 4Pole; 7.5mmPitch; COMBICON

Verical:
Conn Shrouded Header 4 Sides HDR 4 POS 7.5mm Solder ST Thru-Hole

MASTER:
Conn Shrouded Header 4 Sides HDR 4 POS 7.5mm Solder ST Thru-Hole

Online Components:
Conn Shrouded Header HDR 4 POS 7.5mm Solder ST Thru-Hole

Electro Sonic:
PCB headers - nominal current: 12 A - rated voltage III/2: 630 V - nominal cross section: 2.5 mm² - ...
