1779848概述

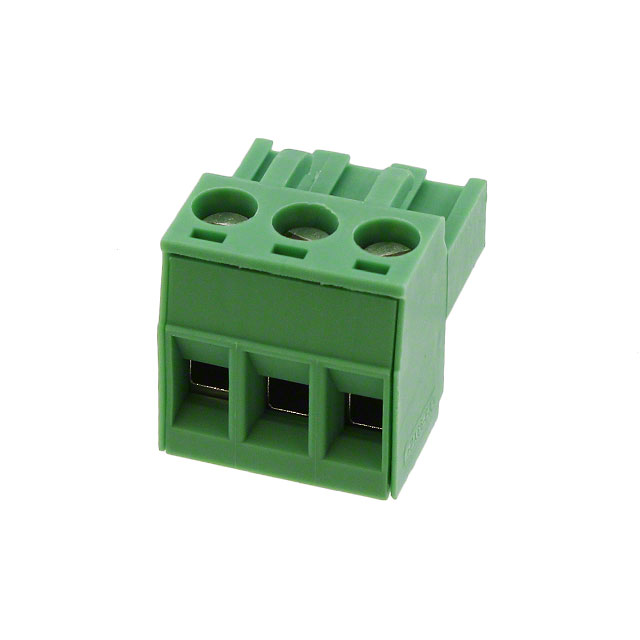

Conn Terminal Block F 3POS 5mm Screw RA Cable Mount 12A

针位端子块


得捷:
TERM BLOCK PLUG 3POS STR 5MM


艾睿:
This 1779848 PCB terminal block manufactured from Phoenix Contact will bridge different sections of wires together. This F connector has 3 contacts that are plated with tin. Its pitch is 5 mm. This is a 1-row connector. It has a female type gender. It has a maximum voltage rating of 320 V. It has a right angle body orientation. 1779848 is housed in polyamide. This device has a maximum current rating of 12 A. It uses the screw termination method. This product is 15 mm long, 15 mm tall and 18.2 mm deep. Its wire is 12-24 AWG.


Allied Electronics:
Conn; Term Blk; Plug; Screw; 3; 5 mm; 24-12 AWG; 12 A; 250 V; M 3


Verical:
Conn Terminal Block F 3 POS 5mm Screw RA Cable Mount 12A


MASTER:
Conn Terminal Block F 3 POS 5mm Screw RA Cable Mount 12A


Online Components:
Conn Terminal Block F 3 POS 5mm Screw RA Cable Mount 12A


Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...


1779848中文资料参数规格
技术参数

触点数 3

线规 12AWG ~ 30AWG

触点电镀 Tin

额定电流 12 A

排数 1

电路数 3

易燃性等级 UL 94 V-0

针脚数 3

额定电流Max 12 A

额定电压Max 320 V

额定电压 250 V

工作电压Max 320 V

封装参数

引脚间距 5 mm

外形尺寸

长度 15 mm

宽度 18.2 mm

高度 15 mm

引脚间距 5 mm

物理参数

外壳颜色 Green

颜色 Green

触点材质 Copper Alloy

绝缘材质 Nylon

外壳材质 Plastic

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536694040

数据手册

在线购买1779848
型号: 1779848
描述:Conn Terminal Block F 3POS 5mm Screw RA Cable Mount 12A
替代型号1779848
型号/品牌 代替类型 替代型号对比

1779848

Phoenix 菲尼克斯

当前型号

当前型号

20020006-G031B01LF

法马通

功能相似

1779848和20020006-G031B01LF的区别

20020006-H031B01LF

法马通

功能相似

1779848和20020006-H031B01LF的区别
