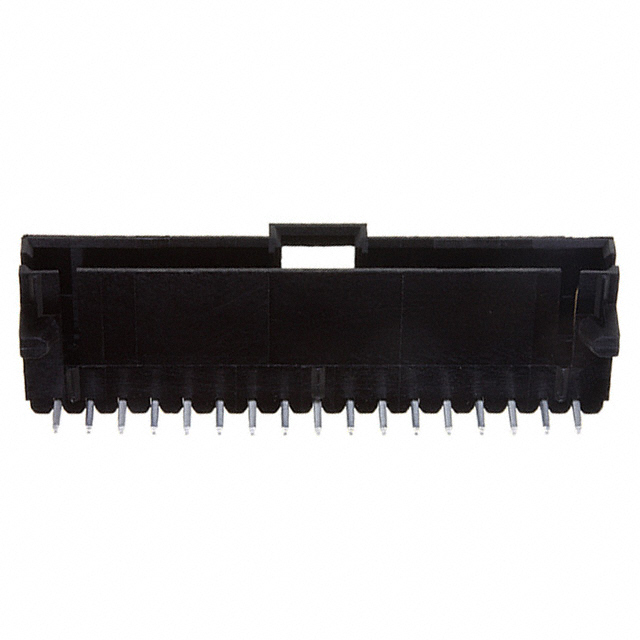

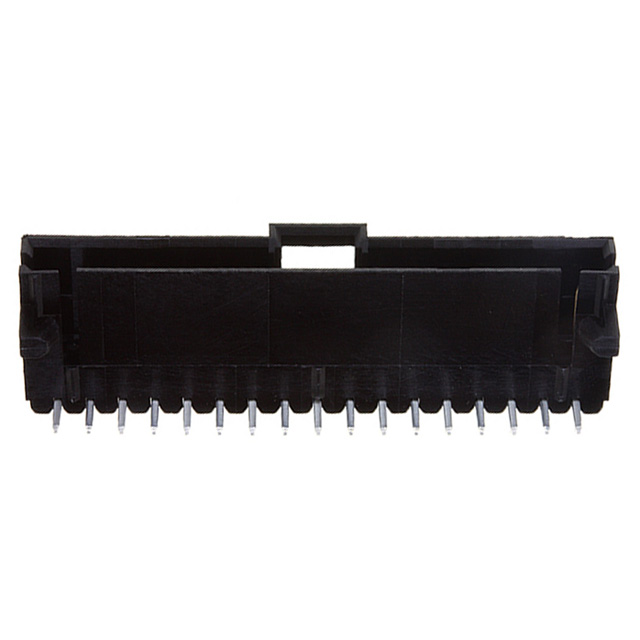

1-103673-6

AMPMODU 17 位置 通孔 单排 直角 0.100 英寸 针座

Connector Header Through Hole, Right Angle 17 position 0.100" 2.54mm

得捷:
CONN HEADER R/A 17POS 2.54MM

艾睿:

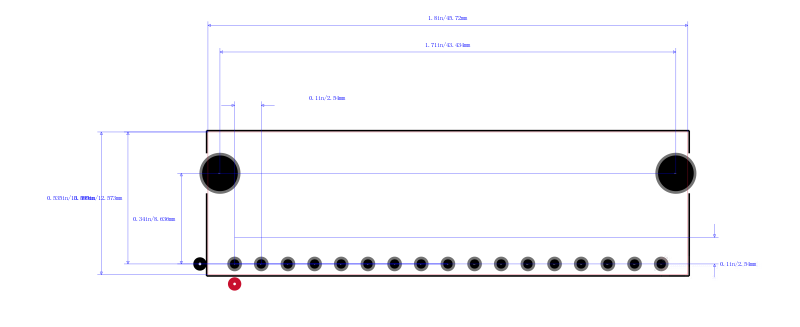

Protect your printed circuit boards from accidental damages with TE Connectivity&s;s shrouded 1-103673-6 header connector. This HDR connector&s;s 17 contacts that are made out of brass and plated with gold over nickel. Its pitch is 2.54 mm. It has a header type gender. It has a right angle body orientation. This is a 1-row connector. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. This product is 45.72 mm long, 6.99 mm tall and 13.59 mm deep. This connector has an operating temperature of -65 to 105 °C. 1-103673-6 is housed in black thermoplastic.

安富利:
Conn Shrouded Header HDR 17 POS 2.54mm Solder RA Thru-Hole Tube

Chip1Stop:
Conn Shrouded Header HDR 17 POS 2.54mm Solder RA Thru-Hole Tube

Powell:
.100 AMPMODU Headers, Housings & Contacts

Electro Sonic:
17 MTE HDR SRRA LATCH W/HLDWN
