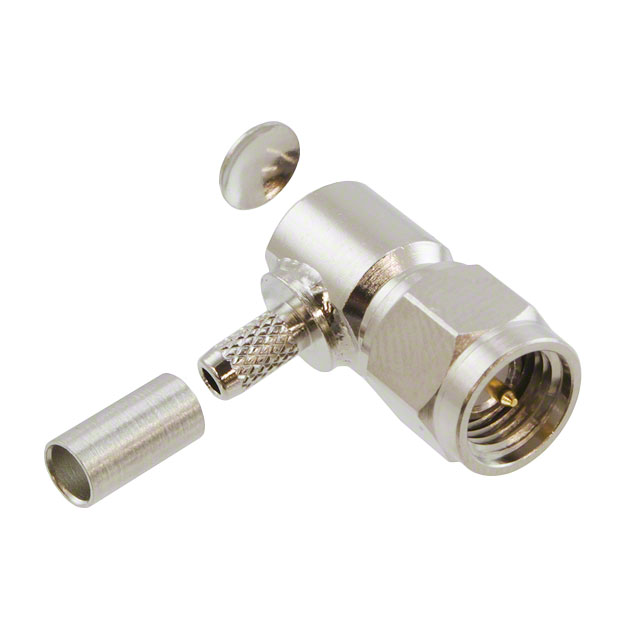

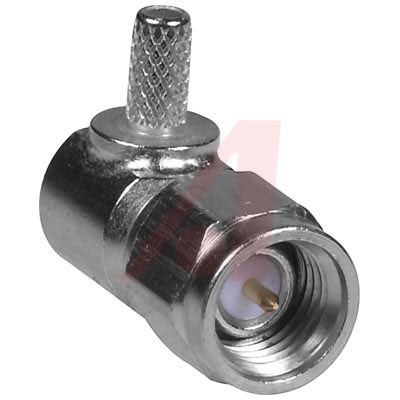

142-0403-106

Conn SMA PL 0Hz to 12.4GHz 50Ω Crimp RA Cable Mount Gold Over Nickel

SMA Type Connector for Flexible Cable-Crimp Termination, Right Angle Plug Body Style

.

* Contacts:** Male — brass with gold plating; Female — beryllium copper with gold plating. ** Insulators:** PTFE fluorocarbon or tefzel. ** Working Voltage V RMS Maximum for Cabled Connectors:** Ranges from 170 for RG-178 to 500 for 0.141 semi-rigid with contact. ** Frequency Range:** Cabled Connectors — 0-12.4 GHz; Uncabled Receptacles, RA Semi-Rigid Cable Connectors — 0-18.0 GHz; Straight Semi-Rigid Cable Connectors and Field Replaceable Connectors — 0-26.5 GHz.
