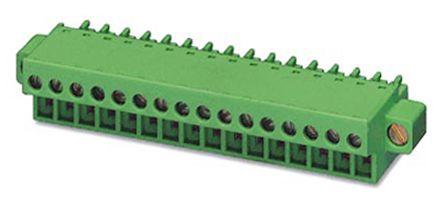

Phoenix Contact MINI COMBICON FRONT-MC 系列 3.81mm 节距 20 路 母 绿色 插头 1851038, 螺钉端接
20 针位端子块 插头,母插口 0.150"(3.81mm) - 180° 自由悬挂
得捷:
TERM BLOCK PLUG 20POS STR 3.81MM
欧时:
Phoenix Contact 1851038 MINI COMBICON FRONT-MC 系列 3.81mm 节距 20 路 母 插头, 螺钉端接 绿色
贸泽:
Pluggable Terminal Blocks 20 Pos 3.81mm pitch Plug 28-16 AWG Screw
艾睿:
Easily mend a cutoff point in a circuit by using this 1851038 PCB terminal block from Phoenix Contact. This F connector has 20 contacts that are plated with tin. This is a 1-row connector. Its pitch is 3.81 mm. It has a straight body orientation. It has a maximum voltage rating of 160 V. It has a female type gender. This device has a maximum current rating of 8 A. 1851038 is housed in polyamide. It uses the screw termination method. This product is 86.59 mm long, 12.3 mm tall and 21.7 mm deep. Its wire is 16-28 AWG.
Verical:
Conn Terminal Block F 20 POS 3.81mm Screw ST Panel Mount 8A
MASTER:
Conn Terminal Block F 20 POS 3.81mm Screw ST Panel Mount 8A
Online Components:
Conn Terminal Block F 20 POS 3.81mm Screw ST Panel Mount 8A
Electro Sonic:
PCB connector - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
触点数 20
线规 16AWG ~ 30AWG
触点电镀 Tin
额定电流 8 A
排数 1
电路数 20
易燃性等级 UL 94 V-0
针脚数 20
安装角度 180 °
额定电流Max 8 A
额定电压Max 160 V
额定电压 320 V
工作电压Max 160 V
安装方式 Screw
引脚间距 3.81 mm
长度 86.6 mm
宽度 21.7 mm
高度 12.3 mm
引脚间距 3.81 mm
外壳颜色 Green
颜色 Green
触点材质 Copper Alloy
外壳材质 Nylon
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536694040
