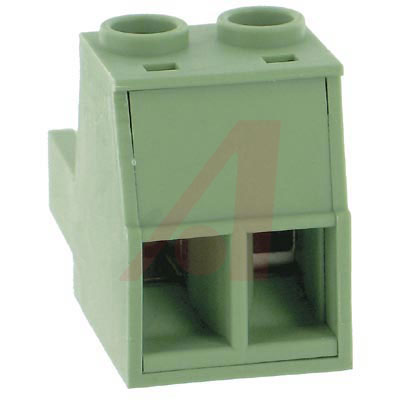

1913507图片1
1913507图片2
1913507图片3
1913507图片4
1913507图片5
1913507图片6
1913507图片7
1913507图片8
1913507图片9
1913507图片10
1913507图片11
1913507概述

10.16mm 排数:1 每排P数:2

* Polyamide Insulating Material

* Voltage: 600, Amps: 55, AWG: 20-6

* Highly Conductive Metal Alloys


得捷:
TERM BLOCK PLUG 2POS STR 10.16MM


立创商城:
10.16mm 排数:1 每排P数:2


艾睿:
When you implement this 1913507 PCB terminal block from Phoenix Contact, you will get the best connections results for your circuit! This F connector has 2 contacts that are plated with silver. It has a female type gender. This is a 1-row connector. It has a maximum voltage rating of 1000 V. Its pitch is 10.16 mm. It has a right angle body orientation. This device has a maximum current rating of 41 A. 1913507 is housed in polyamide. This product is 19.36 mm long, 27.55 mm tall and 39 mm deep. It uses the screw termination method. Its wire is 8-18 AWG.


Allied Electronics:
Conn; Term Blk; PCB; Plug; 2; 10.16mm; 18-8 AWG; COMBICON; 20 A; 800V


Verical:
Conn Terminal Block F 2 POS 10.16mm Screw RA Cable Mount 41A


MASTER:
PCB connector - nominal current: 41 A - rated voltage III/2: 1000 V - nominal cross section: 6 mm² - number of positions: 2 - pitch: 10.16 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Silver


Online Components:
Conn Terminal Block F 2 POS 10.16mm Screw RA Cable Mount 41A


Electro Sonic:
PCB connector - nominal current: 41 A - rated voltage III/2: 1000 V - nominal cross section: 6 mm² - ...


1913507中文资料参数规格
技术参数

触点数 2

线规 8AWG ~ 20AWG

触点电镀 Silver

额定电流 50 A

排数 1

电路数 2

易燃性等级 UL 94 V-0

针脚数 2

安装角度 180 °

额定电流Max 41 A

额定电压Max 1000 V

额定电压 600 V

工作电压Max 1000 V

封装参数

安装方式 Screw

封装 -

引脚间距 10.16 mm

外形尺寸

长度 19.4 mm

宽度 39.0 mm

高度 27.55 mm

封装 -

引脚间距 10.16 mm

物理参数

外壳颜色 Green

颜色 Green

外壳材质 Nylon

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536694040
