1762075

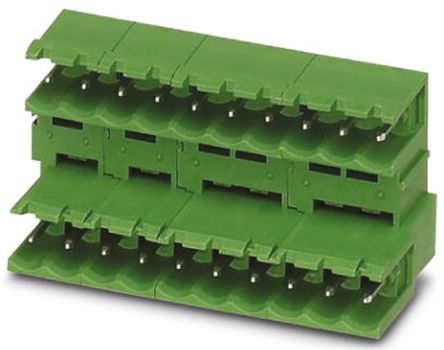

Phoenix Contact CLASSIC COMBICON MDSTBA 和 MDSTB 5.08mm 双层端子块管座CLASSIC COMBICON MDSTBA 和 MDSTB 2,5 5.08mm 双层印刷电路板直角通孔安装有罩端子块管座，带偏置等级。 前缀为 1762 部件号的库存号不带侧面板，且可使用联锁侧面堆叠 前缀为 18420 和 18421 部件号的库存号，带侧面板且可堆叠 有关标记卡，请参见库存号 437-3605、804-0961 和 437-3598 有关编码部分，请参见库存号 648-6882 有关标记笔，请参见库存号 101-2925### Phoenix Contact COMBICON 5.08mm 两件式端子块

Contact CLASSIC COMBICON MDSTBA、MDSTB 和 MDSTBW 5.08mm 双层端子块管座

CLASSIC COMBICON MDSTBA、MDSTB 和 MDSTBW 5.08mm 双层印刷电路板直角通孔安装有罩端子块管座，具有偏置等级。

有关标记卡，请参见库存号 437-3605、804-0961 和 437-3598

有关编码部分，请参见库存号 648-6882

有关标记笔，请参见库存号 101-2925

欧时:

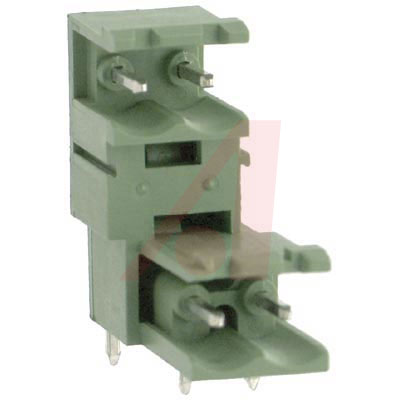

PCB R/A header, 5.08mm, 2 level, 3 way

得捷:

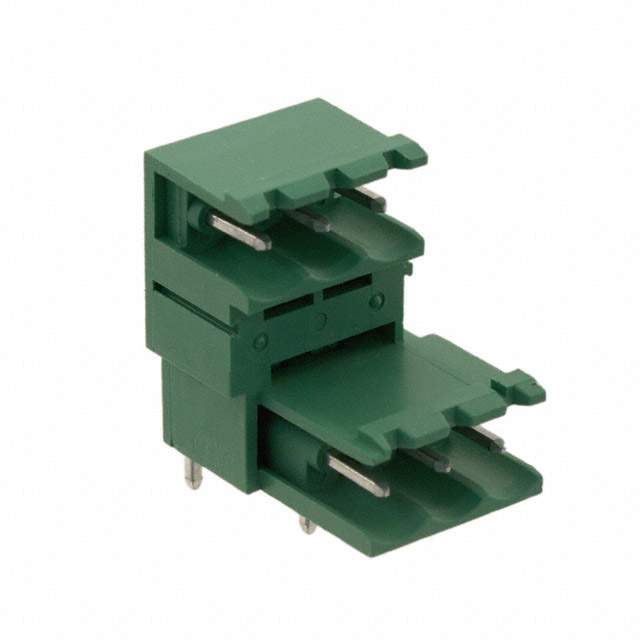

TERM BLOCK HDR 6POS 90DEG 5.08MM

艾睿:
Phoenix Contact brings you their shrouded 1762075 header connector, an important safety tool for protecting your electronic components from accidental damage. This HDR connector has 12 contacts that are plated with tin. It has a right angle body orientation. Its pitch is 5.08 mm. This is a 2-row connector. It has a maximum voltage rating of 320 V. It has a header type gender. This device has a maximum current rating of 10 A. 1762075 is housed in green polybutylene terephthalate. It uses the solder termination method. This product is 17.78 mm long, 23.7 mm tall and 22.1 mm deep.

Allied Electronics:
Conn; TermBlk; PCB; Header; DblLvl; 90DegAngl; Sldr; 3Pole; 5.08mmPitch; COMBICON

Verical:
Conn Shrouded Header HDR 6 POS 5.08mm Solder RA Side Entry Thru-Hole

MASTER:
PCB headers - nominal current: 10 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 3 - pitch: 5.08 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3

Online Components:
Conn Shrouded Header HDR 12 POS 5.08mm Solder RA Thru-Hole

Electro Sonic:
PCB headers - nominal current: 10 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
