1755862

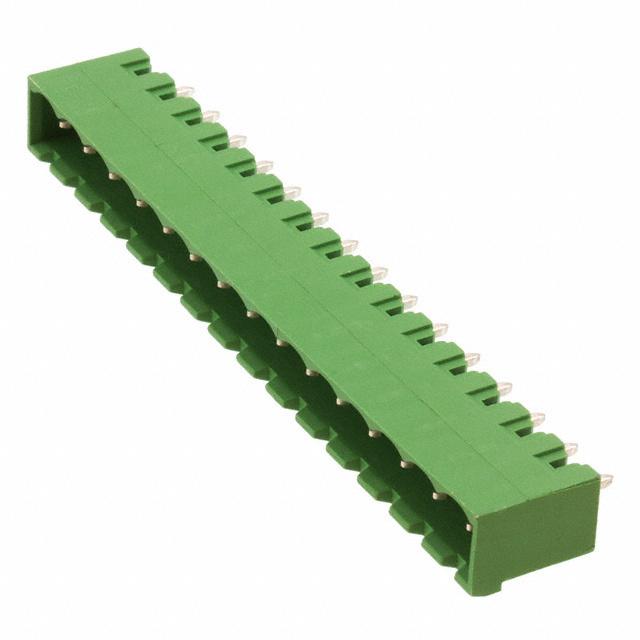

Phoenix Contact PCB 接线端子块 COMBICON MSTBVA 系列 15路 5.08mm节距 1755862, 焊接端接, 12A

针位端子块

得捷:
TERM BLOCK HDR 15POS VERT 5.08MM

贸泽:
可插拔接线端子 15 Pos 5.08mm pitch Through Hole Header

艾睿:
Thanks to Phoenix Contact&s;s shrouded 1755862 header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This HDR connector has 15 contacts that are plated with tin. This is a 1-row connector. It has a straight body orientation. It has a maximum voltage rating of 320 V. Its pitch is 5.08 mm. It has a header type gender. This device has a maximum current rating of 12 A. It uses the solder termination method. 1755862 is housed in green polybutylene terephthalate. This product is 78.2 mm long, 12 mm tall and 8.6 mm deep.

Verical:
Conn Shrouded Header 4 Sides HDR 15 POS 5.08mm Solder ST Thru-Hole

MASTER:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 15 - pitch: 5.08 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]:

Online Components:
Conn Shrouded Header HDR 15 POS 5.08mm Solder ST Thru-Hole

Electro Sonic:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
