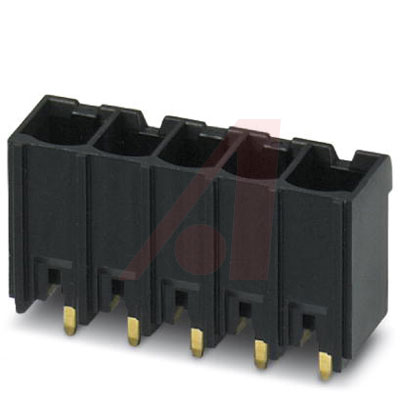

1609565图片6
1609565图片7
1609565图片8
1609565概述

Conn Wire to Board HDR 5POS 5.08mm Solder ST Thru-Hole

Push-Pull connectors provide IP65 and IP67 protection to withstand harsh industrial environments, making them ideal for distributed control applications. The Push-Pull connector system is easy to operate - connectors are locked and unlocked with just one hand. These connectors protect against dirt, water, vibration/shock, and temperature extremes.


得捷:
TERM BLOCK HDR 5POS VERT 5.08MM


贸泽:
Heavy Duty Power Connectors MSTBAV2,5/5GB5,08 5P MSTB HEADER


Allied Electronics:
VS-MSTBVA Series MSTB Contact Insert For Use With Panel Mounting Frame


MASTER:
MSTB contact insert - for PCB assembly - 24 V - 5-pos. - with straight solder pins - RAL 9005 black - for panel mounting frame VS-PPC-F2-MSTB-...-1R-P


Online Components:
Conn Wire to Board HDR 5 POS 5.08mm Solder ST Thru-Hole


Electro Sonic:
MSTB contact insert - for PCB assembly - 24 V - 5-pos. - with straight solder pins - RAL 9005 ...


1609565中文资料参数规格
技术参数

触点数 5

触点电镀 Gold

额定电流 16 A

排数 1

易燃性等级 UL 94 V-0

针脚数 5

额定电流Max 16 A

额定电压Max 24 V

额定电压 24 V

封装参数

安装方式 Through Hole

物理参数

颜色 Black

触点材质 Copper Alloy

工作温度 -40℃ ~ 70℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536694040

数据手册

在线购买1609565
型号: 1609565
描述:Conn Wire to Board HDR 5POS 5.08mm Solder ST Thru-Hole
