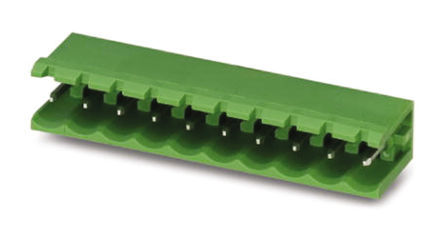

Phoenix Contact COMBICON MDSTB 系列 5.08mm 节距 2 路 PCB 针座 1736768, 焊接端接
Conn Shrouded Header HDR 4 POS 5.08mm Solder RA Thru-Hole
得捷:
TERM BLOCK HDR 4POS 90DEG 5.08MM
欧时:
Phoenix Contact 1736768 COMBICON MDSTB 系列 5.08mm 节距 2 路 PCB 针座, 焊接端接
艾睿:
Mount this shrouded 1736768 header connector from Phoenix Contact on a jumper post on your PCB to support physical configuration options. This HDR connector has 4 contacts that are plated with tin. It has a header type gender. It has a right angle body orientation. This is a 2-row connector. It has a maximum voltage rating of 320 V. Its pitch is 5.08 mm. This device has a maximum current rating of 10 A. This product is 7.62 mm long. 1736768 is housed in polybutylene terephthalate. It uses the solder termination method.
MASTER:
Conn Shrouded Header HDR 4 POS 5.08mm Solder RA Thru-Hole
Online Components:
Conn Shrouded Header HDR 4 POS 5.08mm Solder RA Thru-Hole
Electro Sonic:
PCB headers - nominal current: 10 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
