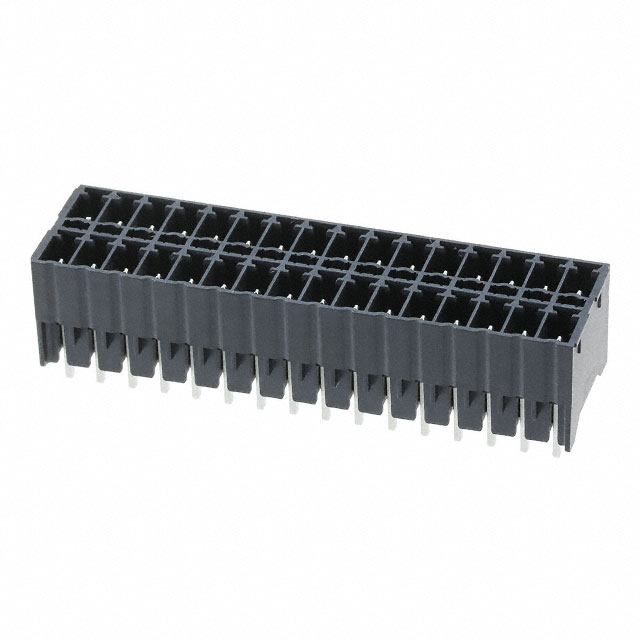

Phoenix Contact PCB 接线端子块 COMBICON MCDNV 系列 16路 3.5mm节距 1952924, 焊接端接, 8A
32 针位端子块 接头，公引脚，带罩（4 面） 0.138"（3.50mm） 垂直 - 通孔
得捷:
TERM BLOCK HDR 32POS VERT 3.5MM
欧时:
Phoenix Contact PCB 接线端子块 COMBICON MCDNV 系列 16路 3.5mm节距 1952924, 焊接端接, 8A
艾睿:
Mount this wire to board 1952924 header connector from Phoenix Contact on a jumper post on your PCB to support physical configuration options. This HDR connector has 32 contacts that are plated with tin. It has a straight body orientation. It has a maximum voltage rating of 200 V. It has a header type gender. Its pitch is 3.5 mm. This is a 2-row connector. This device has a maximum current rating of 8 A/contact. This product is 57.5 mm long, 13.3 mm tall and 15.2 mm deep. It uses the solder termination method. 1952924 is housed in black liquid crystal polymer.
MASTER:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 16 - pitch: 3.5 mm - color: black - contact surface: Tin - mounting: THR soldering - pin layout: Linear pinning - solder pin [P]: 2.6
Online Components:
Conn Wire to Board HDR 32 POS 3.5mm Solder ST Thru-Hole
Electro Sonic:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
