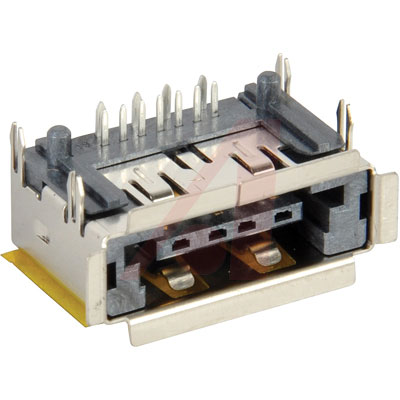

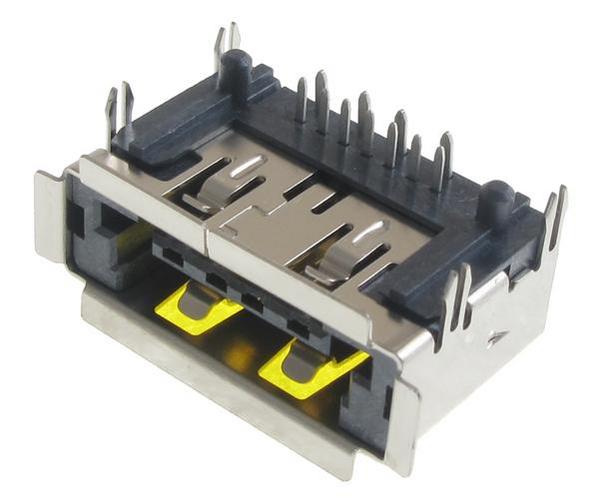

Conn SATA/USB PL/RCP 7/4POS Solder RA Thru-Hole 11 Terminal 1Port T/R
**Overview:**
FCI"s eSATA products cater to the connection between a PC and an external storage drive, similarly to existing USB connections but at significantly higher data rates.
The eSATA connectors support up to 3 Gb/s SATA data rates Gen 2 SATA.
The available connector range includes individual eSATA connectors, 2-in-1 combination connector design capable of accepting eSATA & USB cable plug,and stacked configurations that provide a USB port in addition to a 2-in-1 eSATA/USB port type.
**Features:**
* Compliant with eSATA requirements in Serial ATA Specification
* Up to five times faster than USB2.0 or FireWire 400 external storage solutions
* Supports Gen 1 1.5Gb/s and Gen 2 3Gb/s data rates
* Provide external data backup and protection at up to 3Gb/s data transfer rate
* High-durability design supports 2500 cycles
* Available range includes eSATA, eSATA/USB 2-in-1, and eSATA/USB 2-in-1 + USB combo types
