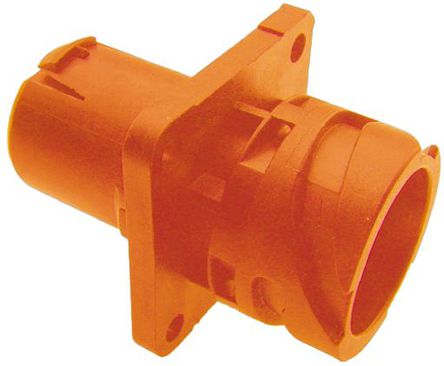

Connectors APD Series Flange Receptacles 4 Way High Voltage
ITT cannon connectors APD series high voltage flange receptacle connectors 4 Way are suitable for connector applications such as sensor and traction-brake control systems, lighting systems and other automotive connector uses. The APD series flange receptacle connectors small form and high power handling make them ideal for many applications. Durable hard wearing connectors derived from ISO 15170.
Operating voltage 500VDC
Contact resistance 5mΩ max
Voltage proof 3500Vac 30 secs
Insulation resistance 10MΩ min.
### 注
For Pins contacts see:752-5676 , 752-5685 for EndBells see:: 752-5688 , 752-5691, 752-5682 , 752-5694 for wire seals see: 752-5698, 752-5708 for wire filler see 752-5701, for Gasket see: 752-5562 and for crimp tool see: 752-5705
### 标准
DIN EN 60529, ISO 15170-2 sec.6.2,6.3,6.4,6.6
