1EDI2001AS

门驱动器 DRIVER_IC

Summary of Features:

.

Single Channel IGBT Driver

.

On-chip galvanic insulation up to 6kV

.

Low propagation delay and minimal PWM distortion

.

Support of 5 V logic levels primary side

.

16-bit Standard SPI interface up to 2 MBaud with daisy chain support primary side

.

Optimal support of EiceBoost functions

.

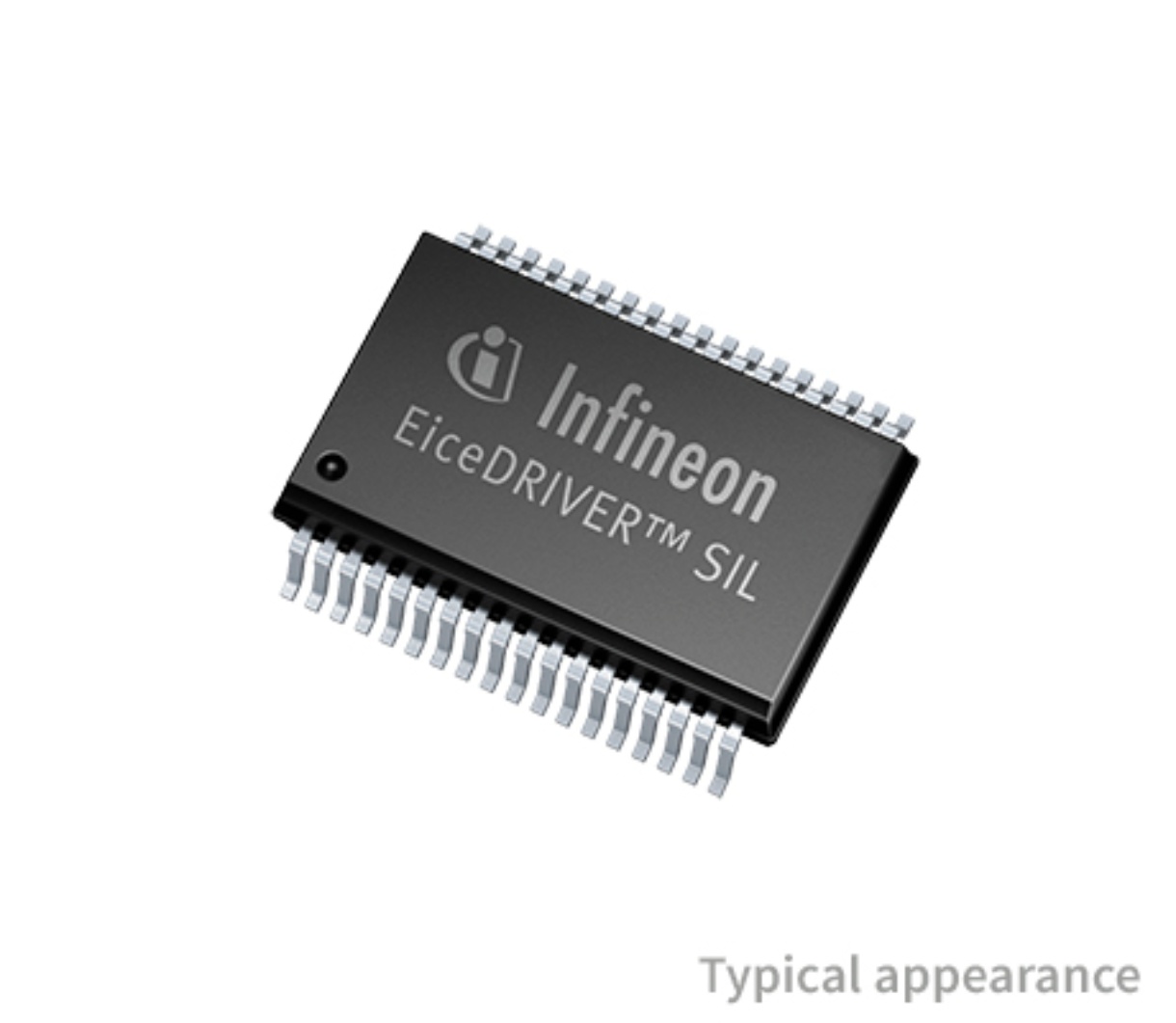

36-pin PG-DSO-36 green package

.

Automotive qualified as per AEC Q100

.

Desaturation monitoring

.

Overcurrent protection

.

Fully programmable Two-Level Turn-Off

.

Automatic Emergency Turn-Off in failure case

.

Gate signal monitoring

.

Individual error and status flags readable via SPI

.

Support for Active Short Circuit strategies

.

Full diagnosticability

.

In-application testability of safety critical functions

Benefits:

.

Support for active short circuit strategies

.

Cost effective implementation of ASIL C/D on system level

.

Significant PCB area savings
