2818795

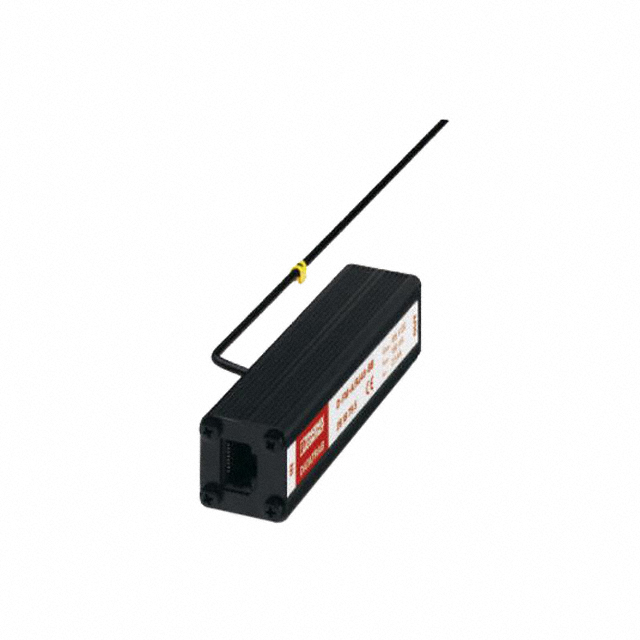

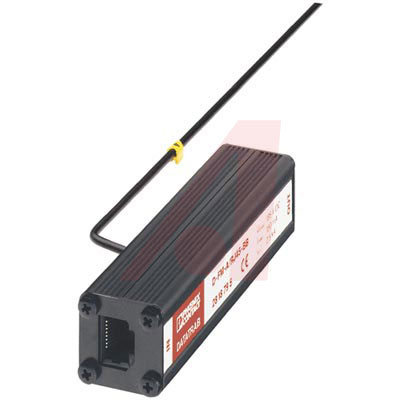

Phoenix Contact 185 V 直流 2.5kA 电话线路保护器, 插入安装, 25.4 x 102 x 25.4mm

Surge Suppressor, 185 VDC Core-Earth Voltage Rating, 150 mA Nom. Current Rating, Black Color

Telecommunications protection with RJ12/RJ45 female connectors can be used internationally for the protection of analog telecommunications interfaces, such as telephones, telefaxes, modems and answering machines with a maximum operating voltage of 185 V.

.

* D-FM-A/RJ45-BB** products are series connected for analog phone lines. The hybrid silicon avalanche diode array and gas discharge tube provides tight clamping voltage line-to-line on each signal pair and high surge current handling capacity line-to-line, line-to-shield and shield-to-ground. The circuit is safely pass ring voltages, while clamping transient voltages. Connection is possible with both RJ11 and RJ12 connections.

RJ 45 connection type IN, connection type OUT
