2966210

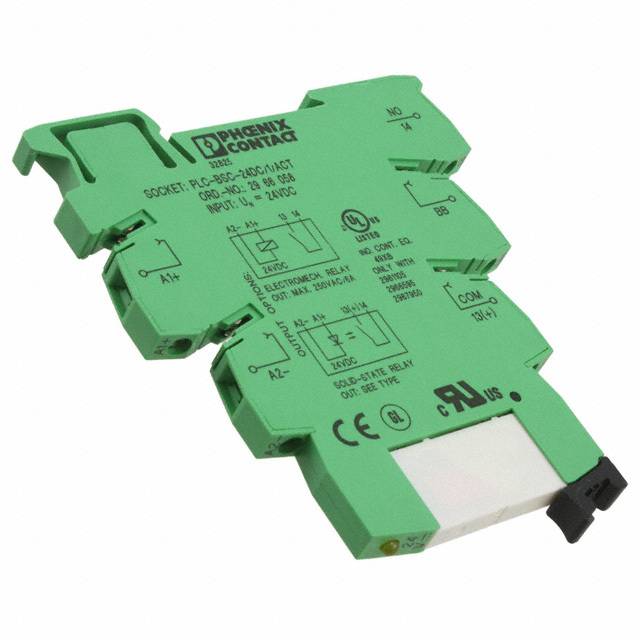

PHOENIX CONTACT  2966210  通用继电器, PLC系列, 接口, 无锁定, SPST常开, 24 VDC, 6 A

PLC-RSC 系列

PLC 接口单极和双极继电器和光耦合器外形相同。 这使模块可在具有通用桥接系统并采用相同附件的任何配置中安装。 V8 适配器可将 8 个继电器或光藕合器连接到 15 路 D-SUB 电缆。

继电器和光耦合器，用于使用“可插入”切换设备进行输入和输出

四个桥接槽，可减少配线；可桥接多达 80 个模块

螺钉接线端子连接

LED 指示器和线圈抑制二极管

250V 版本具有 1500VA 的额定切换功率

尺寸（宽x厚x高）6.2 x 80 x 94 mm（单极、双极 14mm 宽）

工作温度范围 -40 至 +55°C

机械寿命（继电器）1 x 107 次操作

还提供广泛的附件

得捷:
RELAY GEN PURPOSE SPST 6A 24V

欧时:
Phoenix Contact 2966210 单刀单掷 DIN导轨 接口继电器模块

立创商城:
24VDC 6A 无锁存

e络盟:
通用继电器, PLC系列, 接口, 无锁定, SPST常开, 24 VDC, 6 A

艾睿:
Electromechanical Relay 24VDC 2.6KOhm 6A SPST-NO 6.2x80x94mm DIN Rail PLC Relay

Allied Electronics:
Modular part, Electromechanical Output Relay; 24VDC in; 250V, 6A out; DIN rail mnt

Chip1Stop:
Electromechanical Relay 24VDC 2.6KOhm 6A SPST-NO6.2x80x94mm DIN Rail PLC Relay

Verical:
Electromechanical Relay 24VDC 2.6KOhm 6A SPST-NO6.2x80x94mm DIN Rail PLC Relay

Newark:
# PHOENIX CONTACT  2966210  Power Relay, SPST-NO, 24 VDC, 6 A, PLC Series, Socket, Non Latching

MASTER:
PLC-INTERFACE for output functions - consisting of PLC-BSC.../ACT basic terminal block with screw connection and plug-in miniature relay with power contact - for mounting on DIN rail NS 35/7,5 - 1 N/O contact - input voltage 24 V DC

Online Components:
Electromechanical Relay 24VDC 2.6KOhm 6A SPST-NO6.2x80x94mm DIN Rail PLC Relay

Electro Sonic:
PLC-INTERFACE for output functions - consisting of PLC-BSC.../ACT basic terminal block with screw connection and plug-in miniature relay with power ...
