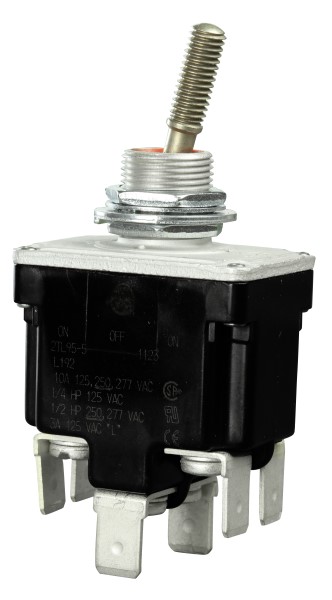

2TL95-5图片5
2TL95-5概述

Switch Toggle ON OFF ON DPDT Round Lever Quick Conn 18A 277VAC 250VDC 372.85VA Panel Mount with Threads

"s low-energy TL Series toggle switches were introduced to give designers the option of gold-plated contacts for switching “non-arching” loads. A range of circuitry, sealing levels and sizes provide even more options to maximize flexibility and enhance performance. This popular product line is UL recognized, CSA certified and CE approved as well as customer lauded.

TL toggle switches from Honeywell feature:

* Silver and/or gold-plated contacts for increased application flexibility

* High strength for durability in tough conditions

* Temperature resistant materials to enhance performance in challenging environments

* Non-tracking case material

* Quality at a competitive price

2TL95-5中文资料参数规格
技术参数

触点类型 DPDT

额定电流Max 18A @28VDC

额定功率Max 372.85 VA

工作温度Max 72 ℃

工作温度Min -65 ℃

额定电压DC Max 250 V

额定电压AC Max 277 V

封装参数

安装方式 Panel, Screw-In

外形尺寸

高度 71.19 mm

物理参数

触点材质 Silver Cadmium Oxide

工作温度 -65℃ ~ 72℃

其他

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536509040

数据手册

在线购买2TL95-5
型号: 2TL95-5
描述:Switch Toggle ON OFF ON DPDT Round Lever Quick Conn 18A 277VAC 250VDC 372.85VA Panel Mount with Threads
