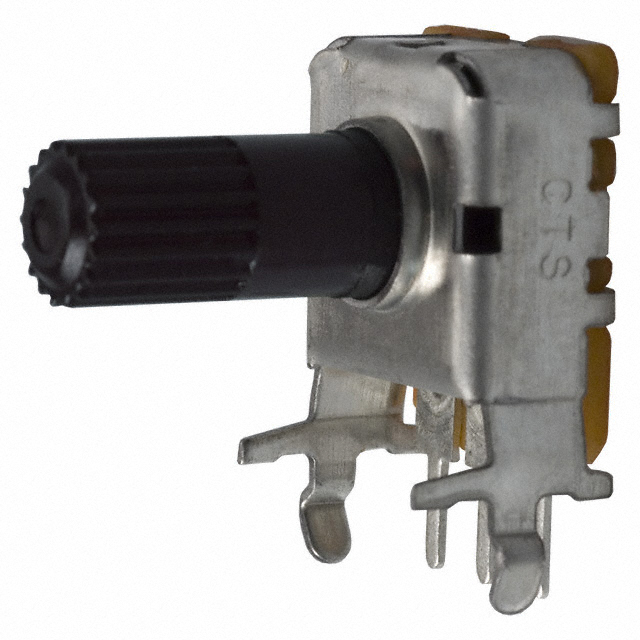

Res Carbon Composition POT 100KΩ 20% 0.15W 1Elec/1MechTurn 6mm 15.2 X 16.4mm Pin Bracket Mount/Through Hole
100k 欧姆 1 组 线性 通孔，卡入式 电位计 无 1.0 匝 碳 0.15W PC 引脚，板锁
艾睿:
Res Carbon Composition POT 100K Ohm 20% 0.15W 1Elec/1MechTurns 6mm 15.2 X 16.4mm Pin Bracket Mount/Through Hole Bulk
Chip1Stop:
Res Carbon Composition POT 100K Ohm 20% 0.15W 1Elec/1MechTurn 6mm 15.2 X 16.4mm Pin Bracket Mount/Through Hole
Verical:
Res Carbon Composition POT 100K Ohm 20% 0.15W 1Elec/1MechTurns 6mm 15.2 X 16.4mm Pin Bracket Mount/Through Hole Bulk
Online Components:
Res Carbon Composition POT 100K Ohm 20% 0.15W 1Elec/1MechTurns 6mm 15.2 X 16.4mm Pin Bracket Mount/Through Hole Bulk
Electro Sonic:
Res Carbon Composition POT 100K Ohm 20% 0.15W 1Elec/1MechTurns 6mm 15.2 X 16.4mm Pin Bracket Mount/Through Hole Bulk
容差 ±20 %
额定功率 0.15 W
电阻 100 KΩ
阻值偏差 ±20 %
工作温度Max 80 ℃
工作温度Min -10 ℃
安装方式 Through Hole

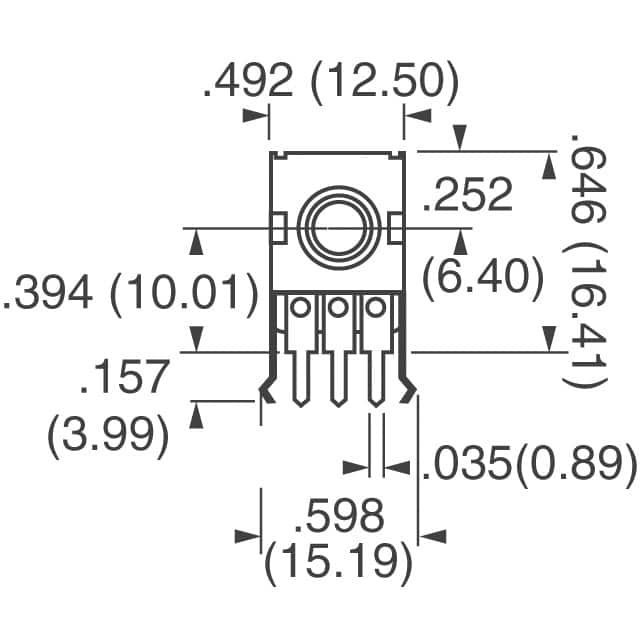

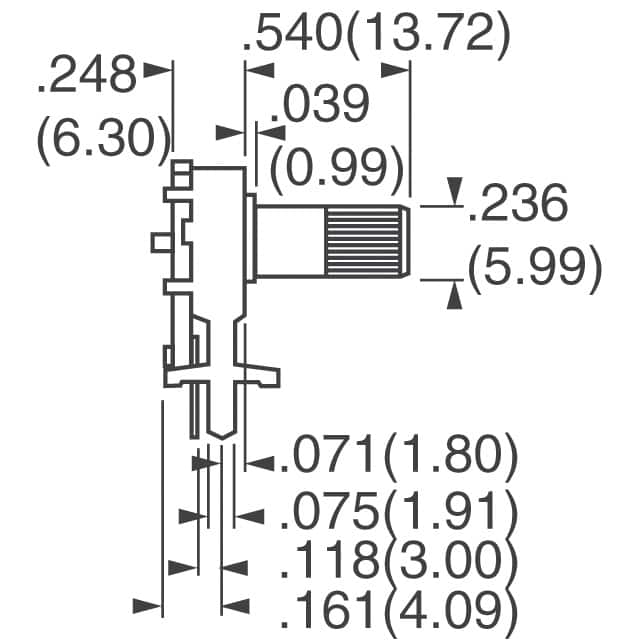

封装 Square - 0.646" L x 0.492" W x 0.248" H 16.40mm x 12.50mm x 6.30mm
长度 12.5 mm
宽度 15.2 mm
高度 16.4 mm
封装 Square - 0.646" L x 0.492" W x 0.248" H 16.40mm x 12.50mm x 6.30mm
工作温度 -10℃ ~ 80℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
