236-404

WAGO  236-404  线至板接线端子, 4 路, 320 V, 24 A, 28 AWG, 12 AWG, 2.5 mm²

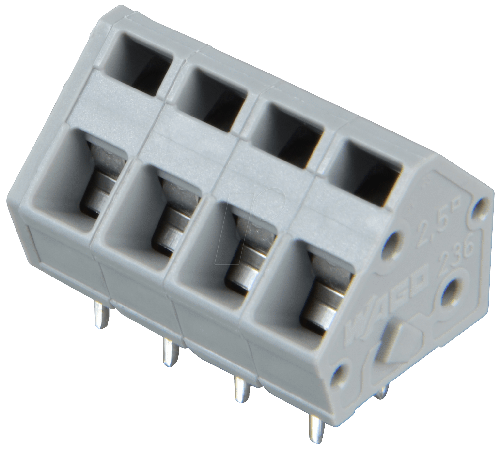

The from Wago is a through hole, 4 pole PCB terminal block with CAGE CLAMP connection. This terminal block pin spacing is 5.08mm and suitable for wire size ranging from 28AWG to 12AWG. 45°connection angle permits a wide range of uses and wiring options.

.

Gray colour terminal block

.

Polyamide 6.6 insulating material

.

Electrolytic copper contact

.

Tin plating

.

Weight of 1.88g

.

Pollution degree of 2

.

UL94 V-0 flammability rating

.

Dimension of terminal block is 14mm x 22.3mm x 17mm L x W x H

.

IEC/EN 60664-1 and Ex e increased safety approval

.

Front / side entry wiring
