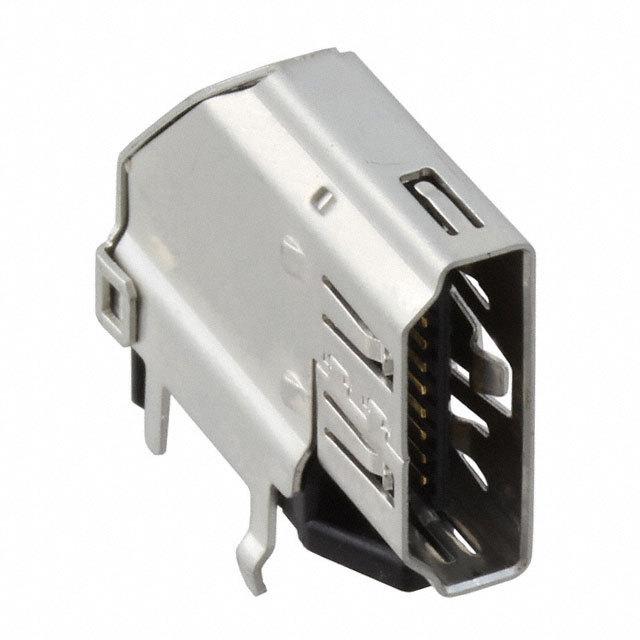

TE CONNECTIVITY 2007435-1 连接器, HDMI, 插座, 19 触点, 电路板安装, 金属主体, 镀金触芯
The is a 19-posistion HDMI Receptacle with gold-plated contacts, through hole PCB mount and flag PCB orientation. High-definition multimedia interface technology is an interface for consumer electronics products such as digital television, set-top boxes and DVD players. HDMI technology supports standard, enhanced or high-definition video plus multi-channel audio on a single cable. 19 positions and 5Gbps of bandwidth to support video and multi-channel audio in a single cable. Easy-to-use friction lock design provides secure electrical contact and smooth cable insertion/extraction.
触点数 19
极性 Male
触点电镀 Gold
额定电流 0.5 A
针脚数 19
额定电流Max 0.5A/触头
工作温度Max 85 ℃
工作温度Min -20 ℃
额定电压 40 VAC
安装方式 Through Hole
封装 Metal
长度 7.89 mm
宽度 23.1 mm
高度 16.4 mm
封装 Metal
外壳颜色 Black
颜色 Black
触点材质 Copper Alloy
工作温度 -20℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
制造应用 Communications & Networking, Signal, 通信与网络, Consumer Electronics, 计算机和计算机周边, Consumer Electronics, Communications & Networking, Computers & Computer Peripherals, Computers & Computer Peripherals, 消费电子产品
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536694040
