300001005,连接器, MINI DISPLAYPORT, 反向
DisplayPort，微型 - 插座 20 位 通孔，直角
欧时:
Mini Displayport Reverse Offset
得捷:
CONN RCP MINI DISPLAYPORT 20P RA
立创商城:
2129320-3
e络盟:
300001005,连接器, MINI DISPLAYPORT, 反向
艾睿:

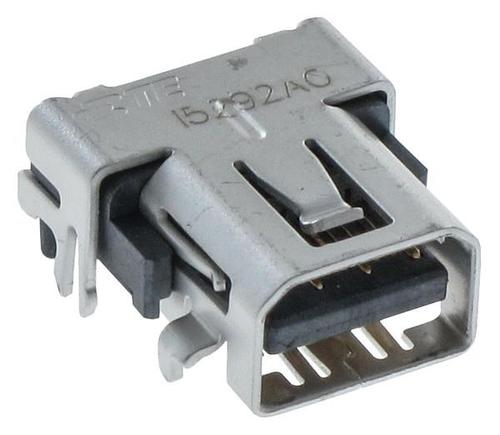

The display port 2129320-3 audio and video connector from TE Connectivity allows you to operate video and sound in your design. This RCP connector&s;s 20 contacts that are made out of copper alloy and plated with gold over nickel. It has a right angle body orientation. It has a receptacle type gender. This connector has a single port. 2129320-3 is housed in thermoplastic. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its 20 terminals use the solder termination method. This product is 11.4 mm long and 12.65 mm.
安富利:
Conn Display Port RCP 20 POS 0.9mm/1.8mm Solder RA Thru-Hole 20 Terminal 1 Port T/R
Verical:
Conn Display Port RCP 20 POS 0.9mm Solder RA Thru-Hole 20 Terminal 1 Port T/R
MASTER:
Conn Display Port RCP 20 POS 0.9mm Solder RA Thru-Hole 20 Terminal 1 Port T/R
Online Components:
Mini Displayport Reverse Offset
Electro Sonic:
Conn Display Port RCP 20 POS 0.9mm Solder RA Thru-Hole 20 Terminal 1 Port T/R
Win Source:
CONN RCP MINI DISPLAYPORT 20P RA / DisplayPort, Mini Receptacle Connector 20 Position Through Hole, Right Angle
