2007741-1

Conn Backplane RCP 180POS 1.9mm Solder RA Thru-Hole

IMP100S,R,RA6P10C,UG,39

得捷:
CONN RCPT IMPACT 180POS EDGE MNT

艾睿:

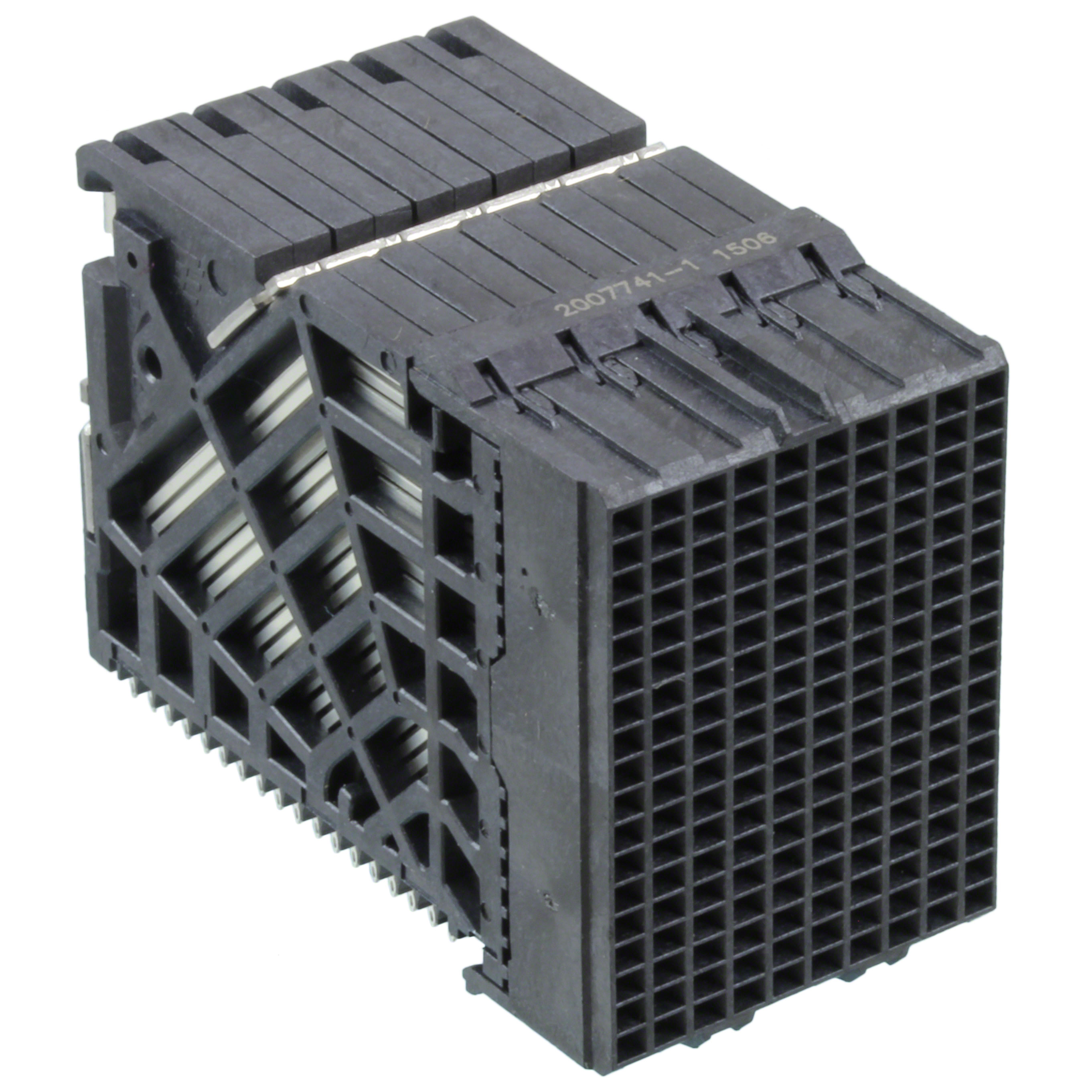

This 2007741-1 backplane connector from TE Connectivity will provide an interface between devices. This RCP connector&s;s 120signal / 60ground contacts that are made out of copper alloy and plated with gold over nickel. Its pitch is 1.9 mm. This is a 18-row connector. It has a right angle body orientation. It has a receptacle type gender. It has a maximum voltage rating of 120 VDC|120VAC. This device has a maximum current rating of 0.75 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. This backplane connector has an operating temperature of -55 to 85 °C. 2007741-1 is housed in liquid crystal polymer. This product is 19 mm long, 27.5 mm tall and 37.3 mm deep.

安富利:
Conn Backplane RCP 180 POS 1.9mm Solder RA Thru-Hole

Chip1Stop:
Conn Backplane RCP 120Signal/60Ground POS 1.9mm Solder RA Thru-Hole Tube

Verical:
Conn Backplane RCP 120Signal/60Ground POS 1.9mm Press Fit RA Thru-Hole Box/Tube

MASTER:
Conn Backplane RCP 120Signal/60Ground POS 1.9mm Press Fit RA Thru-Hole Tube

Online Components:
IMP100S,R,RA6P10C,UG,39

Electro Sonic:
IMP100S,R,RA6P10C,UG,39
