AMPHENOL FCI 20021111-00006T4LF 板至板连接, 垂直, Minitek127 20021111系列, 6 触点, 针座, 1.27 mm, 通孔安装, 2 排

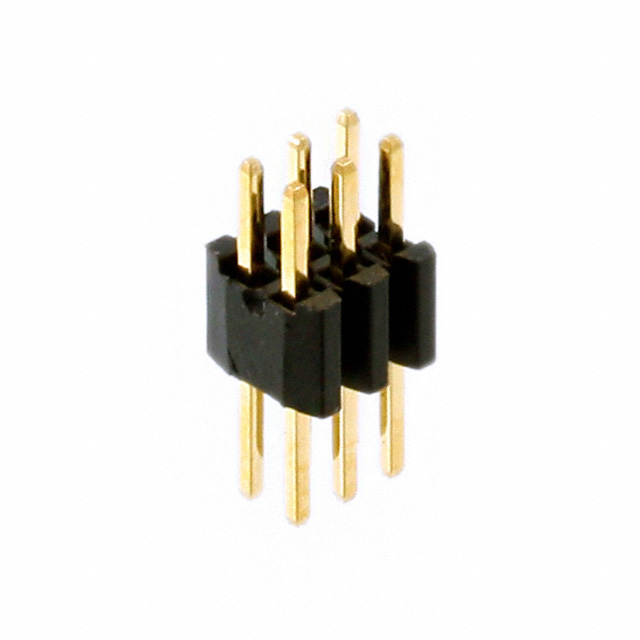

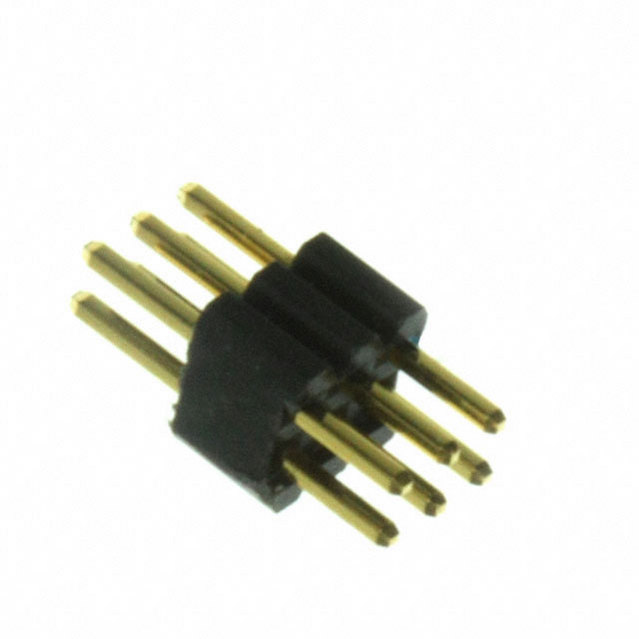

The is a 6-position 2-row vertical through-hole Unshrouded Header with gold-plated copper alloy contacts and high temperature resin housing. The Minitek127® standard board-to-board connector is the improved 1.27mm pitch modular system.
- .
- Halogen-free
- .
- Standoff design
- .
- Allows for applications in a wide range of environments
- .
- Facilitates automated pick and place assembly
- .
- Allow cleaning to eliminate soldering contaminations
- .
- Easy for customer design and process
- .
- 1A Current rating per contact
- .
- 125VAC Voltage rating
触点数 6
极性 Male
触点电镀 Gold
绝缘电阻 100 MΩ
排数 2
针脚数 6
拔插次数 100
额定电流Max 1A/触头
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 125 VAC
接触电阻Max 30 mΩ
安装方式 Through Hole
长度 3.81 mm
宽度 3.4 mm
高度 5.5 mm
外壳颜色 Black
颜色 Black
触点材质 Copper Alloy
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 Test & Measurement, Medical, Industrial, -, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
20021111-00006T4LF FCI Electronics 法马通 | 当前型号 | 当前型号 |
FTSH-103-01-L-D 申泰电子 | 功能相似 | 20021111-00006T4LF和FTSH-103-01-L-D的区别 |
