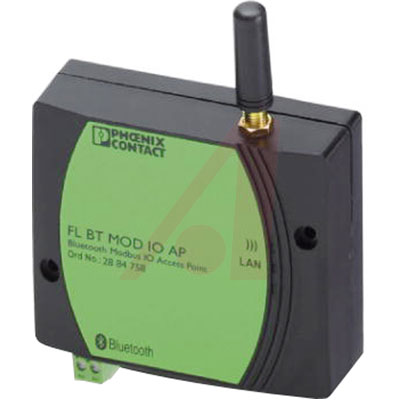

"Phoenix 2884758 Wireless Bluetooth Modbus TCP I/O Access Point 9 - 30V DC, "
The Factory Line Wireless Bluetooth Access Point can be used as an access point for up to seven devices, as an Ethernet Client adaptor and as a serial Bluetooth Com Server.
The FL BLUETOOTH AP offers secure transmissions with 128 bit data encryption, support of LAN, PAN and SPP Bluetooth profiles, configurable range from 0.1 m to 250 m without obstacles and automatic roaming of an Ethernet client between several Bluetooth Access points.
**Features:**
* Ethernet Interface
* Interface Ethernet
* Type of Connection: RJ45 Female Connector
**Wireless Interface**
* Name: Bluetooth
* Frequency Range: ISM 2.4 GHz
* Transmission Capacity Max.: 14 dBm with Automatic Control
* Number of Wireless Interfaces: 1
* Wireless Modules That Can Be Connected: 7
* Profiles Supported: LAP, PAN, SPP
**Wireless Card**
* No. 1
* Type Bluetooth: 2.4 GHz Up-to-1 Mbps
* Assembly Instructions Permanently Installed
**Antenna**
* Assembly Instructions External OMNI Omnidirectional Antenna, Antennas Can Be Exchanged
* No. 1
* Type of Connection: SMA Male
**Power Supply for Module Electronics**
* Type of Connection: Via COMBICON
* Supply Voltage: 24 VDC
* Range of Supply Voltages: 9 VDC ... 30 VDC
* Supply Current: 200 mA
**Functions**
* Operating Modes: Access Point/Ethernet Client Adapter/COM Server
* Configuration: Web-Based Management
* Automatic Channel Selection: FHSS, AFH
* Security: 128-bit Data Encoding
* MAC Filter
* Authentication
* PIN
* Non-Discoverable
**General Data
* **Dimensions: 80 W x 65 H x 25 D mm
* Weight: 95 g
* Ambient Temperature Operation: –30°C ... +65°C
* Ambient Temperature Storage/Transport: –40°C ...+ 85°C
* Permissible Humidity Operation: 5-90% Non-Condensing
* Permissible Humidity Storage/Transport: 10-95% Non-Condensing
* Air Pressure Operation: 795 hPa ... 1080 hPa Up-to-2000 m Above Mean Sea Level
* Degree of Protection: IP20
* Class of Protection: III
* Mounting Type: Wall Mounting
