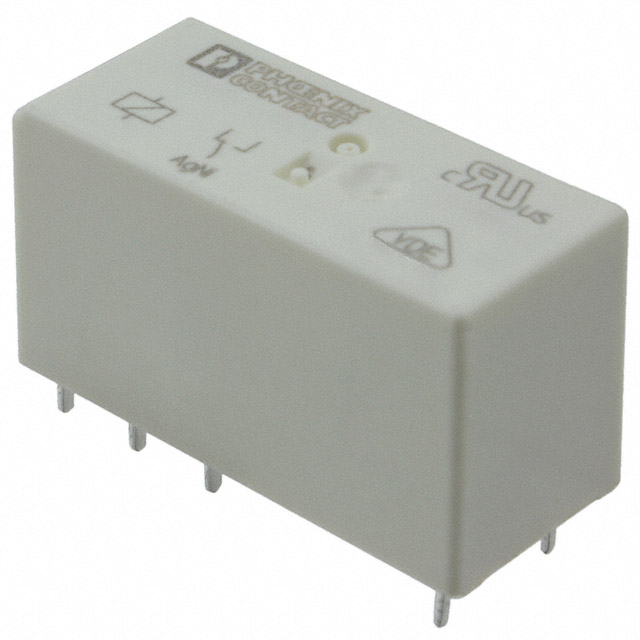

工业继电器 REL-MR-110DC/21HC 110VDC 1 PDT
**PLC-RSC Series**
PLC Interface single- and double-pole relays, and opto-couplers, having the same profile. This allows the modules to be installled in any configuration with a common bridging system and using the same accessories. The V8 adapter connects 8 relays or opto-couplers to a 15 way D-SUB cable.
得捷:
RELAY GEN PURPOSE SPDT 16A 110V
欧时:
Relay;E-Mech;Power;SPDT;Cur-Rtg 16A
贸泽:
工业继电器 REL-MR-110DC/21HC 110VDC 1 PDT
艾睿:
Pluggable miniature relays, with power contact for high continuous current, 1 PDT, input voltage 110 V DC
Allied Electronics:
Relay; E-Mech; Power; SPDT; Cur-Rtg 16A; Ctrl-V 110VDC; Vol-Rtg 250AC/DC; PCB Mnt; 8 Pin
Verical:
Pluggable miniature relays, with power contact for high continuous current, 1 PDT, input voltage 110 V DC
MASTER:
Plug-in miniature power relay - with power contact for high continuous currents - 1 PDT - input voltage 110 V DC
Online Components:
Electromechanical Relay 110VDC 26.6KOhm 16A SPDT29x12.7x15.7mm THT Miniature Relay
Electro Sonic:
Plug-in miniature power relay - with power contact for high continuous currents - 1 PDT - input voltage 110 V ...
额定电压DC 250 V
额定电压AC 250 V
触点额定电流 16 A
线圈电压 110 V
线圈电流 4.1 mA
线圈电阻 26.6 KΩ
额定电流Max 16 A
线圈电压DC 110 V
额定功率Max 4 KVA
额定电压DC Max 250 V
额定电压AC Max 250 V
安装方式 Through Hole
引脚数 8
封装 DIP
长度 29 mm
宽度 15.7 mm
高度 12.7 mm
封装 DIP
触点材质 Silver Nickel
工作温度 -40℃ ~ 85℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536490050
