工业继电器 PR1RSP3LV230AC/2X21 8A 230V AC DPDT SPNG
**Interface relay module, Series PR1-R**

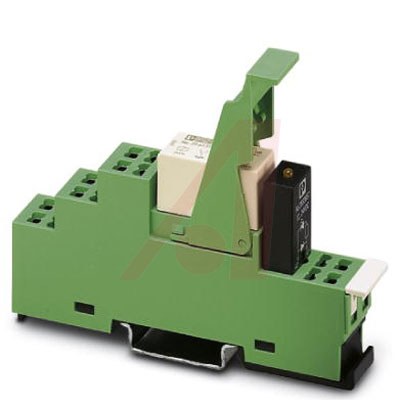

PR1 series fully preassembled relay modules with screw/spring cage connection, consisting of: relay socket, multi-layer/power contact relay, plug-in display or anti-interference module and retaining bracket.
贸泽:
工业继电器 PR1RSP3LV230AC/2X21 8A 230V AC DPDT SPNG
艾睿:
Electromechanical Relay 230VAC 8A DPDT 97x16x72mm Plug-In Module Relay
Allied Electronics:
DPDT DIN Rail Interface Relay Module Screw, 15A
MASTER:
Electromechanical Relay 230VAC 8A DPDT 16mm 72mm 97mm Plug-In Module Relay
Online Components:
Electromechanical Relay 230VAC 8A DPDT97x16x72mm Plug-In Module Relay
Electro Sonic:
Electromechanical Relay 230VAC 8A DPDT 16mm 72mm 97mm Plug-In Module Relay
额定电流 8 A
触点额定电流 8 A
线圈电压 230 VAC
线圈电流 6 mA
线圈电压AC 230 V
额定电流Max 8 A
额定功率Max 2 KVA
工作温度Max 60 ℃
工作温度Min -25 ℃
额定电压DC Max 250 V
额定电压AC Max 250 V
引脚数 8
长度 97 mm
宽度 16 mm
高度 72 mm
触点材质 Silver Nickel
工作温度 -25℃ ~ 60℃
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536490050
