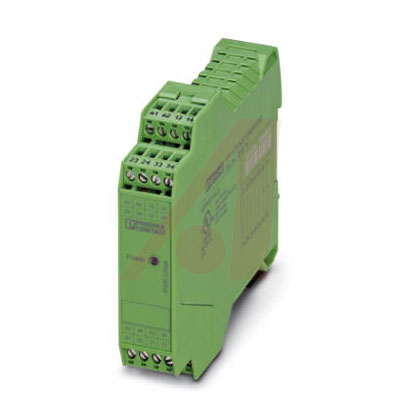

Electromechanical Relay 120VDC 120VAC 6A 5PST-NO/DPST-NC 22.5mm 114.5mm 99mm DIN Rail Safety Relay
**PSR Forcibly Guided Coupling Relays**
The PSR safety relays are equipped with forcibly guided contacts as per EN 50205.
艾睿:
Electromechanical Relay 120VDC 120VAC 6A 5PST-NO/DPST-NC 22.5x114.5x99mm DIN Rail Safety Relay
Allied Electronics:
Safety Relay; E-Mech; 5 NO; 2 NC; 6A; Ctrl-V 120AC/DC; Vol-Rtg 250AC/DC; Screw
MASTER:
Safe coupling relay with force-guided contacts - 5 N/O contacts - 2 N/C contacts - 1-channel - plug-in screw terminal block - width: 22.5 mm
Online Components:
Electromechanical Relay 120VDC 120VAC 6A 5PST-NO/DPST-NC 22.5mm 114.5mm 99mm DIN Rail Safety Relay
Electro Sonic:
Safe coupling relay with force-guided contacts - 5 N/O contacts - 2 N/C contacts - 1-channel - plug-in screw terminal ...
额定电流 6 A
通道数 1
触点额定电流 6 A
线圈电压 120 V
线圈电流 11 mA
线圈电压AC 120 V
额定电流Max 6 A
线圈电压DC 120 V
额定功率Max 1.5 KVA
工作温度Max 50 ℃
工作温度Min -20 ℃
额定电压 250 VAC
电源电压 250VAC, 250VDC
安装方式 Screw
封装 Module
长度 99 mm
宽度 114.5 mm
高度 22.5 mm
封装 Module
工作温度 -20℃ ~ 50℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536490050
