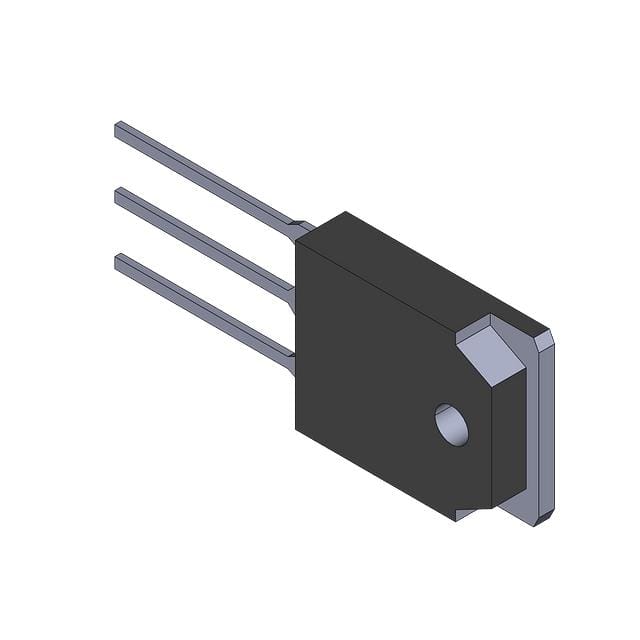

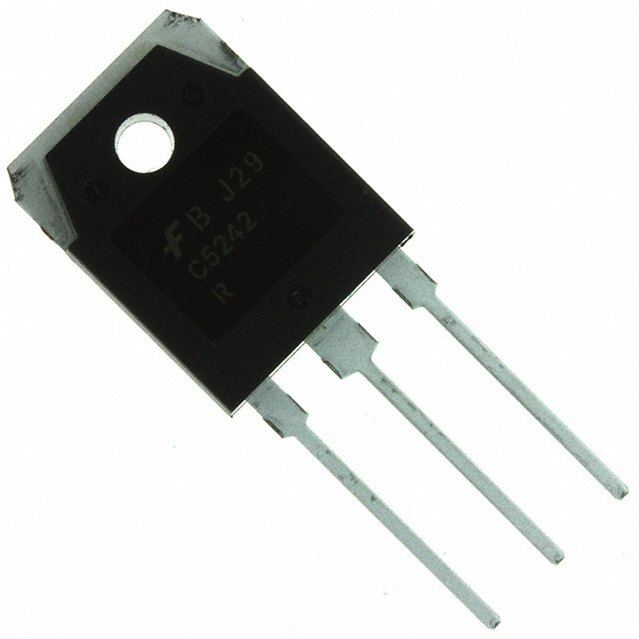

2SC5242RTU

NPN外延硅晶体管 NPN Epitaxial Silicon Transistor

NPN Epitaxial Silicon Transistor

Features

• High Current Capability: IC= 15A

• High Power Dissipation : 130watts

• High Frequency : 30MHz.

• High Voltage : VCEO=230V

• Wide S.O.A for reliable operation.

• Excellent Gain Linearity for low THD.

• Complement to 2SA1962/FJA4213.

• Thermal and electrical Spice models are available

• Same transistor is also available in:

\--TO264 package, 2SC5200/FJL4315 : 150 watts

\--TO220 package, FJP5200 : 80 watts

\--TO220F package, FJPF5200 : 50 watts

Applications

• High-Fidelity Audio Output Amplifier

• General Purpose Power Amplifier
