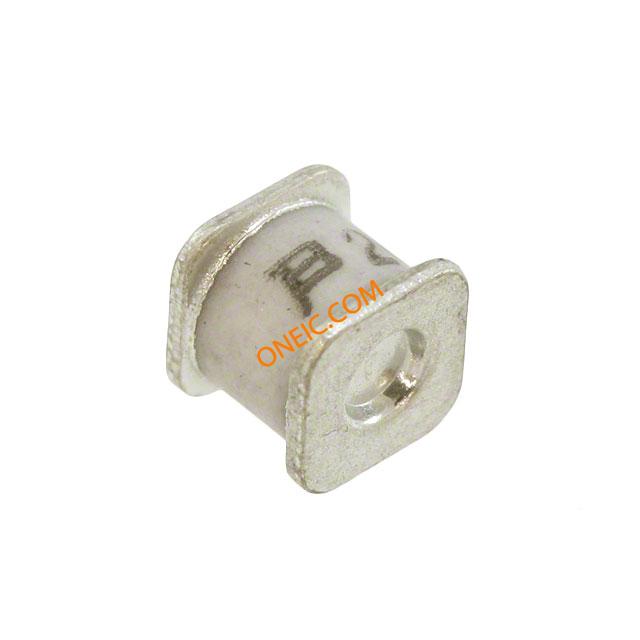

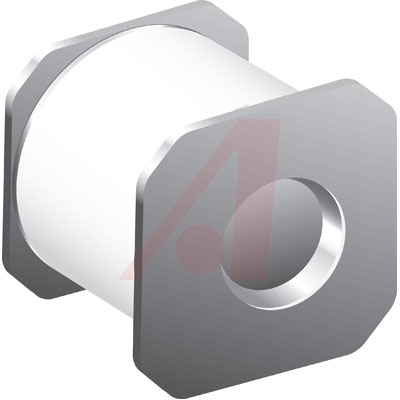

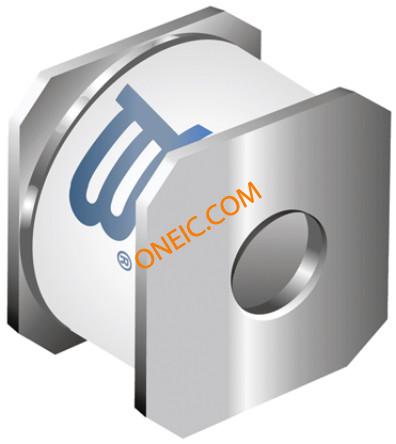

BOURNS 2053-09-SM-RPLF 气体放电管 GDT, Miniature, 2053系列, 90 V, 2终端SMD, 3 kA, 800 V
2053 系列 SMT 气体放电管，5kA/3A
细小外型，表面安装印迹，低电容
应用于电信、工业和消费电子产品
立创商城:
2053-09-SM-RPLF
欧时:
Bourns 2053 系列 90V 5kA 表面安装器件 2 电极气体放电管 2053-09-SM-RPLF
e络盟:
气体放电管 GDT, Miniature, 2053系列, 90 V, 2终端SMD, 3 kA, 800 V
艾睿:
Reduce the risk of equipment damage with Bourns&s; 2053-09-SM-RPLF gas discharge tube. Its DC sparkover voltage is 90 V with a tolerance of ±20%, and its impulse discharge current 8x20 us, 10 Hits is 1 A. This item should be stored between -40 °C and 115 °C. This GDT has an operating temperature range of -30 °C to 85 °C. It has 2 terminals/electrodes. The 2053-09-SM-RPLF GDT has a solder pad termination style. Mount your GDT on a printed circuit board using surface mount technology to produce the most effective results. This product is 4 mm long, 4.2 mm tall and 4.2 mm deep.
Allied Electronics:
Tube; Gas Discharge; 90V; SMT; 4X4.2mm Dia.
安富利:
Surge Arrestor 2-Electrode Miniature Gas Discharge Tube 90VDC 5kA Surface Mount T/R
Chip1Stop:
Gas Discharge Tubes 90VDC 1KADC 1AAC 0.5pF Solder Pad SMD
Verical:
Gas Discharge Tubes 90VDC 1KADC 1AAC 0.5pF Solder Pad SMD
Newark:
# BOURNS 2053-09-SM-RPLF GAS DISCHARGE TUBE, 90V
