2809607

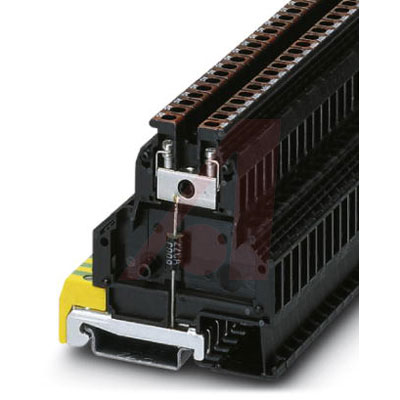

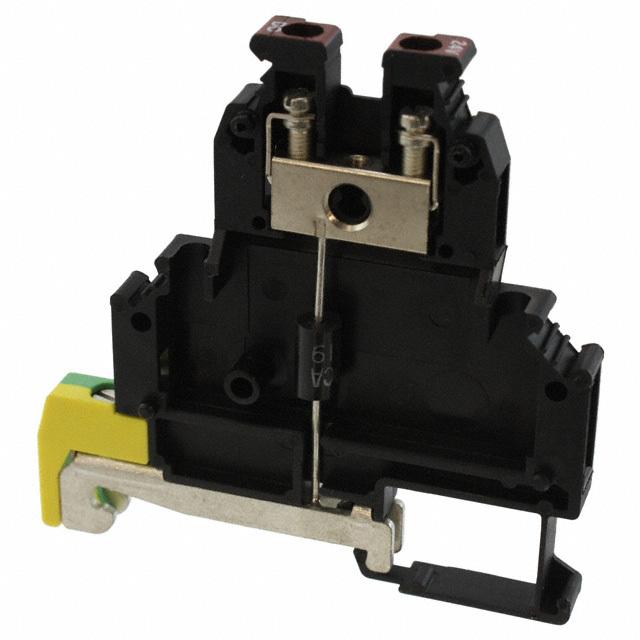

Conn Modular Terminal Block F Screw T DIN Rail 32A

**Surge Protection Terminals**

Contact TT range of surge protection DIN rail terminal blocks.

得捷:
CONN TERM BLK FEED THRU 10-26AWG

艾睿:
This modular terminal blocks 2809607 PCB terminal block manufactured from Phoenix Contact will bridge different sections of wires together. It has a female type gender. This is a 2-row connector. It has a maximum voltage rating of 24 VDC. This device has a maximum current rating of 32 A. 2809607 is housed in polyamide. This product is 66.5 mm long, 69.5 mm tall and 6.2 mm deep. Its wire is 12-24 AWG. This quick disconnect terminal has an operating temperature of -40 to 85 °C. It uses the screw termination method.

Allied Electronics:
24 V dc 169A TT-SLKK5 Surge Arrester, DIN Rail Mounting

Verical:
Conn Modular Terminal Block F Screw T DIN Rail 32A

MASTER:
Surge Suppressor F Screw T DIN Rail 32A

Online Components:
Conn Modular Terminal Blocks F Screw T DIN Rail 32A

Electro Sonic:
Surge Suppressor F Screw T DIN Rail 32A
