2281050

HE10带连接器的螺钉端子接口模块，适用于将电气电缆连接至输入/输出卡和电子设备。 设计为安装在标准 BS 5584:1978 “DIN”卡轨上。适合顶帽和 G 型卡轨 温度范围 -20 至 +50°C 合适的电缆横截面积：（实心）0.2 至 4mm²，（绞合）0.2 至 2.5 mm² ### 接口模块（DIN 导轨安装）

HE10

带的螺钉端子接口模块，适用于将电气电缆连接至输入/输出卡和电子设备。 设计为安装在标准 BS 5584:1978 “DIN”卡轨上。

适合顶帽和 G 型卡轨

温度范围 -20 至 +50°C

合适的电缆横截面积：（实心）0.2 至 4mm²，（绞合）0.2 至 2.5 mm²

欧时:

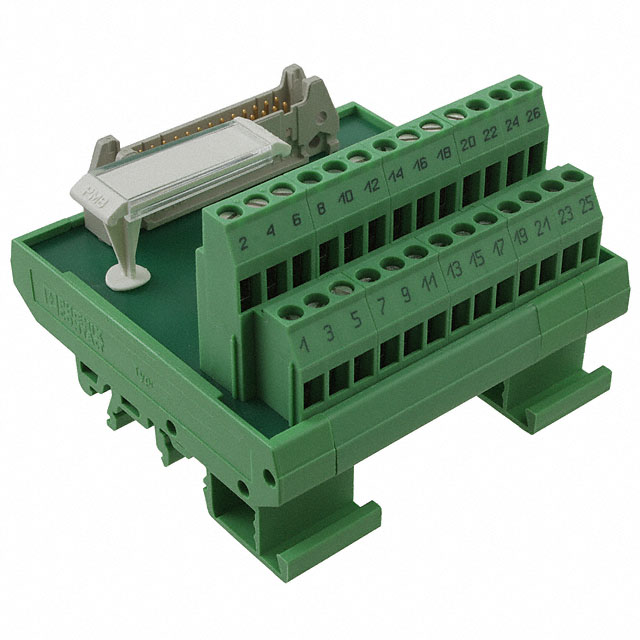

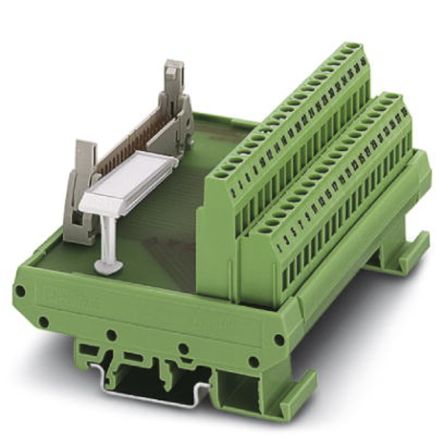

26 way HE10 interface module

得捷:
INTERFACE MOD HDR 26POS 12-24AWG

艾睿:
Easily mend a cutoff point in a circuit by using this modular terminal blocks 2281050 PCB terminal block from Phoenix Contact. This F connector has 26 F contacts. It has a straight body orientation. It has a female type gender. This is a 2-row connector. It has a maximum voltage rating of 60 V. This device has a maximum current rating of 1 A. This product is 77 mm long, 78.8 mm tall and 58.5 mm deep. It uses the screw termination method. This quick disconnect terminal has an operating temperature of -20 to 50 °C. Its wire is 12-24 AWG.

Allied Electronics:
Interface Module; Varioface; Screw Connand flat-ribbon cable plug; 26 Pos

Verical:
Interface module with screw connection for mounting on NS 32 or NS 35/75 with pin strip and short and long locking latches for socket strips 26-pos

MASTER:
VARIOFACE module with screw connection for mounting on NS 32 or NS 35/75 with pin strip and short and long locking latches for socket strips 26-pos

Online Components:
Conn Modular Terminal Block F 26 POS Screw ST G DIN Rail/T DIN Rail 1A

Electro Sonic:
VARIOFACE module with screw connection for mounting on NS 32 or NS 35/75 with pin strip and short and long ...
