Switch DIP OFF ON SPST 2 Raised Slide 0.05A 24VDC Gull Wing 5000Cycles 2.54mm SMD Tube
DIP SPST 位置 表面贴装型 滑动式（标准） 触动器 50mA 24VDC
得捷:
SWITCH SLIDE DIP SPST 50MA 24V
艾睿:

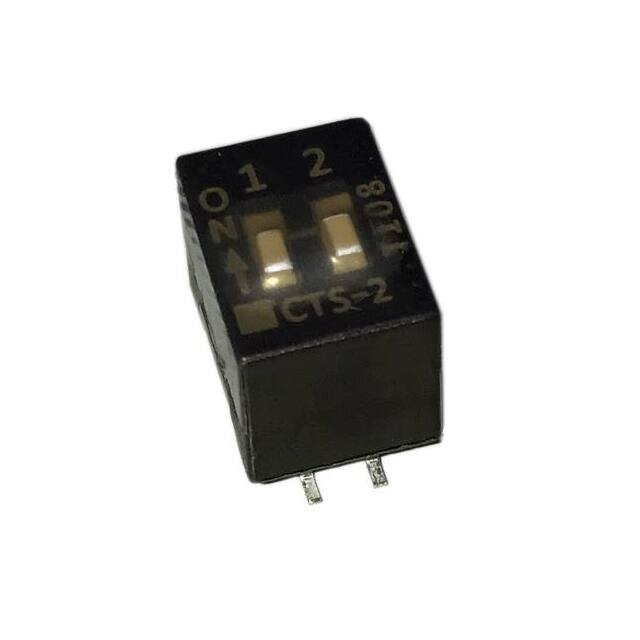

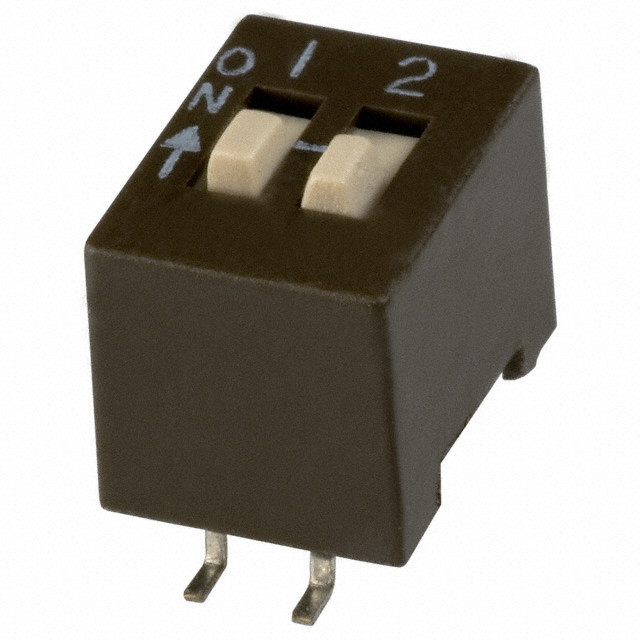

Use CTS&s;s 204-2ST dual in-line package switch to easily control different electric paths on a printed circuit board. It has a SPST configuration. This device has a maximum current rating of 0.05 A @ 24VDC. This DIP switch has a minimum operating temperature of -55 °C and a maximum of 85 °C. The 204-2ST DIP switch has a gull wing termination style. This product is 7.26 mm long, 10.14 mm tall and 10.4 mm deep. The maximum DC voltage rating is 24 VDC. This product&s;s terminal pitch is 2.54 mm.
Chip1Stop:
Switch DIP OFF ON SPST 2 Raised Slide 0.05A 24VDC Gull Wing 2.54mm SMD Tube
Verical:
Switch DIP OFF ON SPST 2 Raised Slide 0.05A 24VDC Gull Wing 5000Cycles 2.54mm SMD Tube
Electro Sonic:
Switch DIP OFF ON SPST 2 Raised Slide 0.05A 24VDC Gull Wing 5000Cycles 2.54mm SMD Tube
额定电压DC 24 V
接触器类型 Standard
方向 Vertical
触点类型 SPST
针脚数 2
额定电流Max 0.05A @24VDC
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压 24 VDC
额定电压DC Max 24 V
接触电阻Max 50 mΩ
安装方式 Surface Mount
引脚间距 2.54 mm
长度 7.26 mm
宽度 10.4 mm
高度 10.14 mm
引脚间距 2.54 mm
触点材质 Copper Alloy
工作温度 -55℃ ~ 85℃
产品生命周期 10000 Cycles
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
