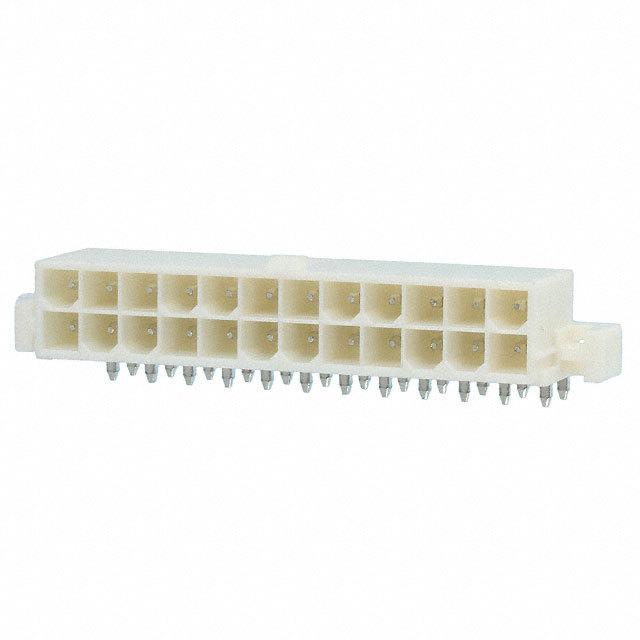

2-1586044-4

Conn Power PIN 24POS 4.2mm Solder RA Thru-Hole 24 Terminal 1Port Tray

针座 通孔，直角 24 位置 0.165"（4.20mm）

得捷:
CONN HEADER R/A 24POS 4.2MM

贸泽:
Headers & Wire Housings 24P VAL-U-LOK R/A HDR SCRMT V0

艾睿:
Connecting an electronic device to a power supply has never been easier with this 2-1586044-4 power connector from TE Connectivity. This PIN connector&s;s 24 contacts that are made out of brass and plated with tin over nickel. This connector has a single port. Its pitch is 4.2 mm. It has a maximum voltage rating of 600 VAC. It has a right angle body orientation. 2-1586044-4 is housed in nylon. This device has a maximum current rating of 9 A/contact. The component will be shipped in tray format. This product is 61.6 mm long and 19.4 mm. This power connector has an operating temperature range of -40 °C to 105 °C. Its 24 terminals use the solder termination method.

Allied Electronics:
HEADER; RIGHT ANGLE; VAL-U-LOK; 24 POS; DUAL ROW; UL94V-0; SCREW MOUNT

安富利:
Conn Power PIN 24 POS 4.2mm Solder RA Thru-Hole 24 Terminal 1 Port Tray

Powell:
VAL-U-LOK Series Connector System
